Home /Products/Paper Bag Flexo Printing Machine/Single Faced Printing Page IR Chicken Wing Bag Printing Machine With IR Drying System

Single Faced Printing Page IR Chicken Wing Bag Printing Machine With IR Drying System

1
MOQ
Single Faced Printing Page IR Chicken Wing Bag Printing Machine With IR Drying System
Features Gallery Product Description Request A Quote
Features
Specifications
Model NO.: FM-CS
Type: Flexo
Embossing Structure: Rotary Letterpress
Structure: Unit Type
Application: Flexible Packaging Printing
Automatic Grade: Automatic
Printing Speed: 200m/min
Max. Web Width: 1370
Max. Printing Width: 1350
Printing Repeat Length: 300-1200mm
Max.Unwinder Diameter / Rewinder: 1524mm
Gearing: 1/8
Diameter Of Web Roller: 100mm
Drying Mode: Hot Air Drying & IR Drying / UV Drying
Printing Material: 60-300GSM Paper Roll
Transport Package: Wooden Pallet With Film Package
Specification: FM-CS1350
Trademark: Fengming
Origin: Zhejiang, China
HS Code: 8443160090
Supply Ability: 5 Sets / Month
After-sales Service: Overseas After-Sales Services Available
Warranty: 1 Year
Printing Page: Single Faced
Printing Color: 8 Colors
Anilox Roller: Ceramic Anilox Roller
Dryer: IR
Customization: Available | Customized Request
Highlight:

wing bag printing machine

,

chicken bag printing machine

,

chicken aluminium printing machine
Basic Infomation
Place of Origin: CHINA
Brand Name: FENGMING
Certification: CE
Model Number: FM-CS1020
Payment & Shipping Terms
Packaging Details: wooden pallet
Delivery Time: 30 working days
Payment Terms: T/T, L/C
Supply Ability: 15 sets
Product Description

Single Faced Printing Page IR Chicken Wing Bag Printing Machine with IR Drying System


Single Faced Printing Page IR Chicken Wing Bag Printing Machine With IR Drying System 0

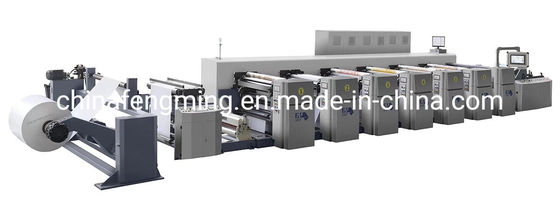

FM-CS1020-1350 Flexographic Printing Machine (Petal Type)

  1. Petal type plate mounting, anilox and cylinder with quick change structure.
  2. Printing unit easy operation, cylinder and anilox pressing once successfuly.
  3. Plate full servo shaftless transmission, automatically pre-print, time saving & material saving.
  4. Registering remains the same during lifting process.
  5. Register position automatic memory function.

Applications:
Suitable for eco-friendly packaging, such as the paper bag used for food and healthcare industry, paper box, paper cup, the pre-printing carton of paper bag, bag courier, milk carton medicine use.

Paper Used:
Kraft paper, paperboard, coated paper, liner paper, laminated paper, multilayer composite paper, carton board materials ect.

Technical Parameters:
Specification 1020 1300 1350
Max. Web Width 1020mm 1300mm 1370mm
Max. Printing Width 1000mm 1270mm 1350mm
Printing Repeat 300-1200mm 300-1200mm 300-1200mm
Max.Unwinder Diameter 1524mm 1524mm 1524mm
Max.Rewinder Diameter 1524mm 1524mm 1524mm
Gearing 1/8cp 1/8cp 1/8cp
Max Printing Speed 160-200m/min 160-200m/min 160-200m/min
Diameter of web roller 100mm 100mm 100mm
Drying mode Hot Air Drying/IR Drying/ UV Drying
Printing Material 60-300gsm paper roll

Single Faced Printing Page IR Chicken Wing Bag Printing Machine With IR Drying System 1
Single Faced Printing Page IR Chicken Wing Bag Printing Machine With IR Drying System 2
Single Faced Printing Page IR Chicken Wing Bag Printing Machine With IR Drying System 3
Single Faced Printing Page IR Chicken Wing Bag Printing Machine With IR Drying System 4

Single Faced Printing Page IR Chicken Wing Bag Printing Machine With IR Drying System 5
Single Faced Printing Page IR Chicken Wing Bag Printing Machine With IR Drying System 6
Single Faced Printing Page IR Chicken Wing Bag Printing Machine With IR Drying System 7
Single Faced Printing Page IR Chicken Wing Bag Printing Machine With IR Drying System 8
