Home /Products/Paper Bag Flexo Printing Machine/PE Coated Flexo Paper Printing Machine 100mm Web Roller Diameter And UV Dryer

PE Coated Flexo Paper Printing Machine 100mm Web Roller Diameter And UV Dryer

1
MOQ
USD80000-136000/Set
Price
PE Coated Flexo Paper Printing Machine 100mm Web Roller Diameter And UV Dryer
Features Gallery Product Description Request A Quote
Features
Specifications
Model NO.: FM-B
Structure: Unit Type
Application: Flexible Packaging Printing
Automatic Grade: Automatic
Printing Speed: 150m/mim
Max. Web Width: 1020mm
Max, Printing Width: 1000mm
Printing Repeat Length: 286-1200mm
Max. Unwinder & Rewinder: 1524mm
Gearing: 1/8cp
Max. Speed: 150m/Min
Diameter Of Web Roller: 100mm
Drying Mode: Hot Air Drying & IR Drying
Ink Used: Water-Based Ink
Printing Material: 60-400GSM Paper Roll
Transport Package: Wooden Pallet With Film Package
Specification: CE
Trademark: Fengming
Origin: Zhejiang, China
HS Code: 8443160090
Supply Ability: 10 Sets/Month
Printing Page: Single Faced
Printing Color: 4 Colors
Anilox Roller: Ceramic Anilox Roller
Dryer: UV& IR
Type: Flexo
Embossing Structure: Rotary Letterpress
Customization: Available | Customized Request
Highlight:

PE Coated Flexo Paper Printing Machine

,

UV Dryer Flexo Paper Printing Machine

,

100mm Web Roller Flexo Printing Equipment
Basic Infomation
Place of Origin: CHINA
Brand Name: FENGMING
Certification: CE
Model Number: FM-B1020
Payment & Shipping Terms
Packaging Details: woden pallet
Delivery Time: 30 working days
Payment Terms: T/T, L/C
Supply Ability: 10 sets
Product Description

 PE Coated Double Flexo Printing Machine with 100mm Web Roller Diameter and UV IR Dryer


PE Coated Flexo Paper Printing Machine 100mm Web Roller Diameter And UV Dryer 0
Established in 2006, Wenzhou Fengming Machine Co.,Ltd is a professional manufacturer and exporter of Flexo Printing Machine and Wax Coating Machine. We are located in the urban distric of Pingyang, economically developed city on the bank of East China of Zhejiang, Covering an area of 9300 square meters, we now have over 120 employees.With Superior quality, satisfying after sales services, we have got many orders from different customers all over the world. We have exported our machines to more than 30 countries such as Russia, India, Turkey, Thailand, Egypt, etc. And the feedback we get from customers are they feel satisfied with our machines. We always regards "today's quality is tomorrow's market and users are supreme" as aim, and has gained reliance and praise from customers Welcome to visit our factory and to order from us!
Product Description

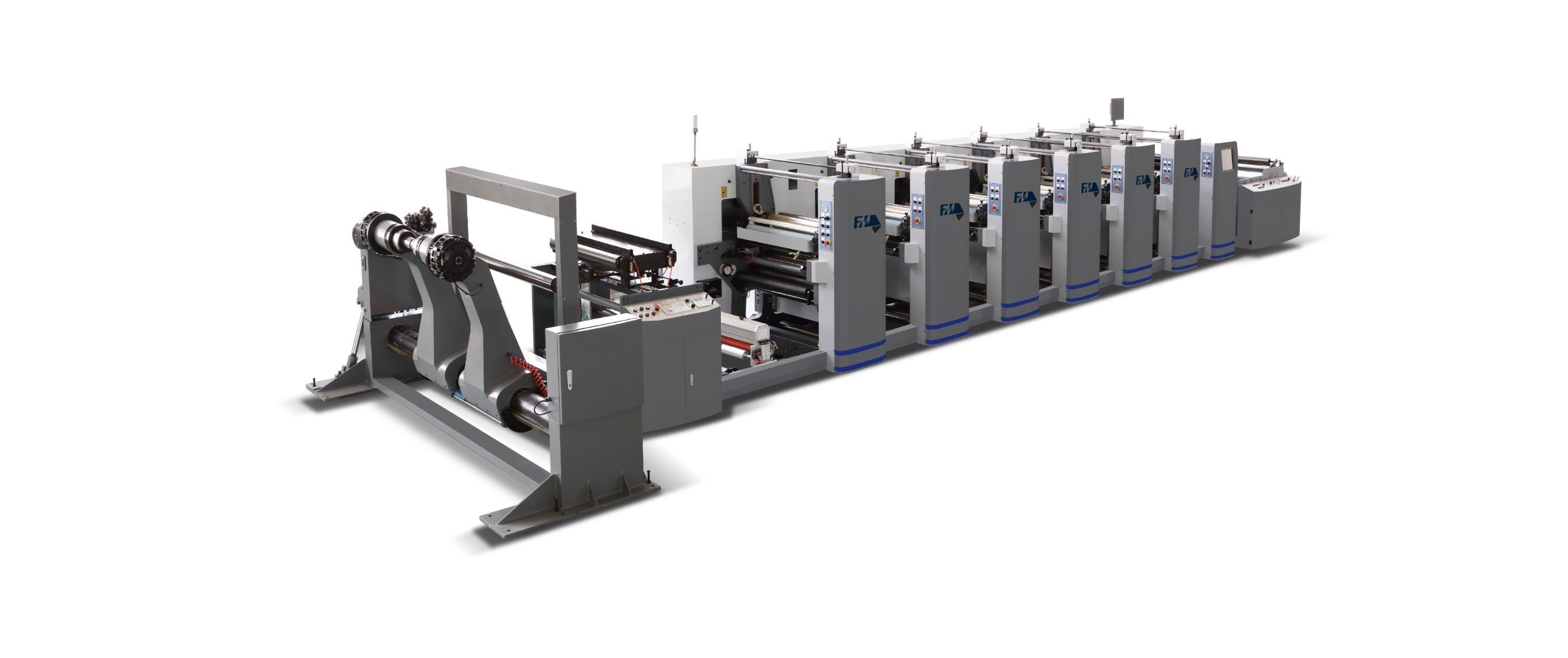

PE Coated Flexo Paper Printing Machine 100mm Web Roller Diameter And UV Dryer 1
PE Coated Flexo Paper Printing Machine 100mm Web Roller Diameter And UV Dryer 2
Application Object
Suitable for eco-friendly packaging, such as the paper bag used for food and healthcare industry, paper box, paper cup, the pre-printing carton of paper bag, bag courier, milk carton package etc.

Paper Used
Kraft paper, paperboard, coated paper, liner paper, laminated paper, multilayer composite paper, carton board materials ect.



Detailed Photos

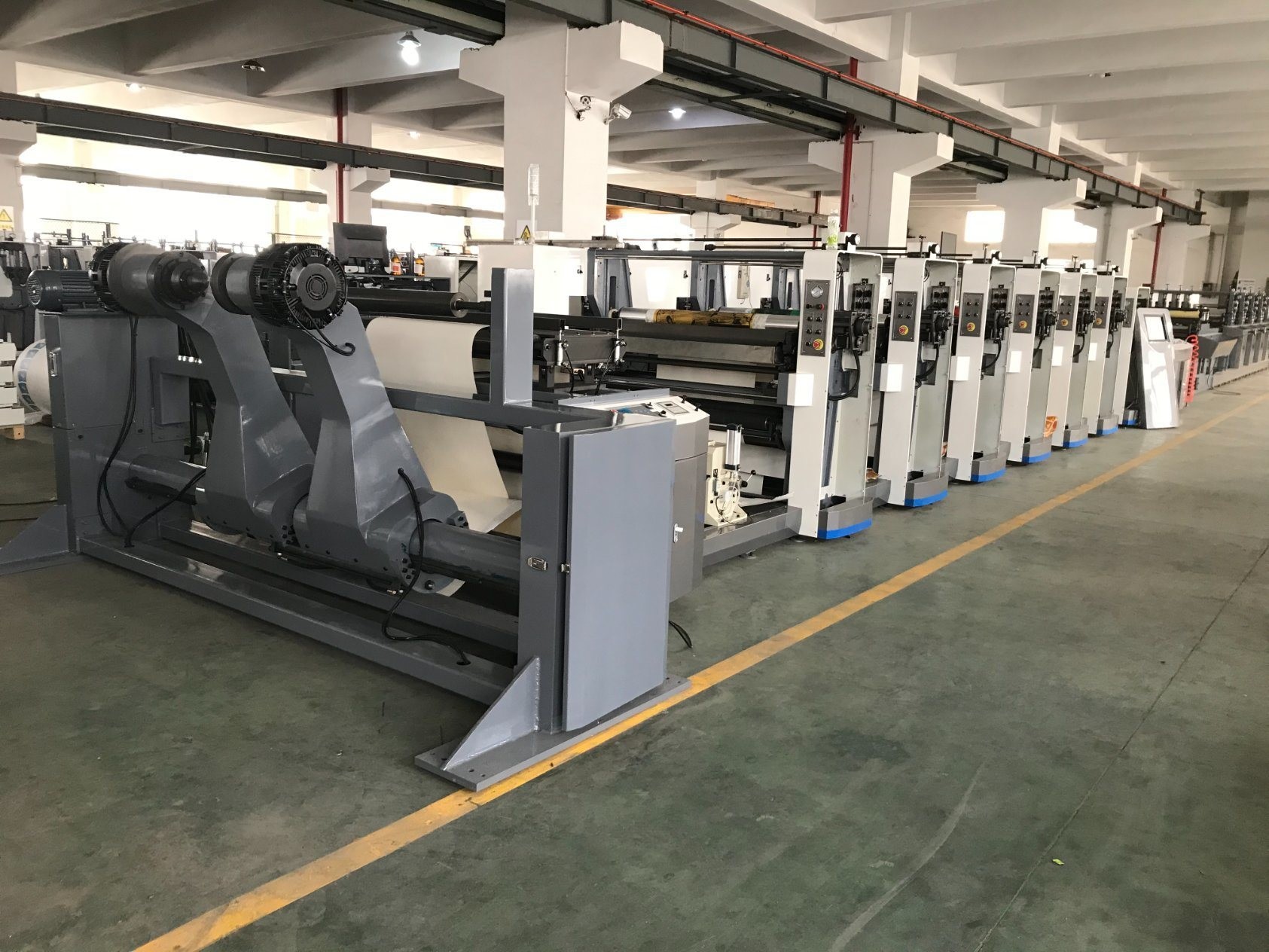

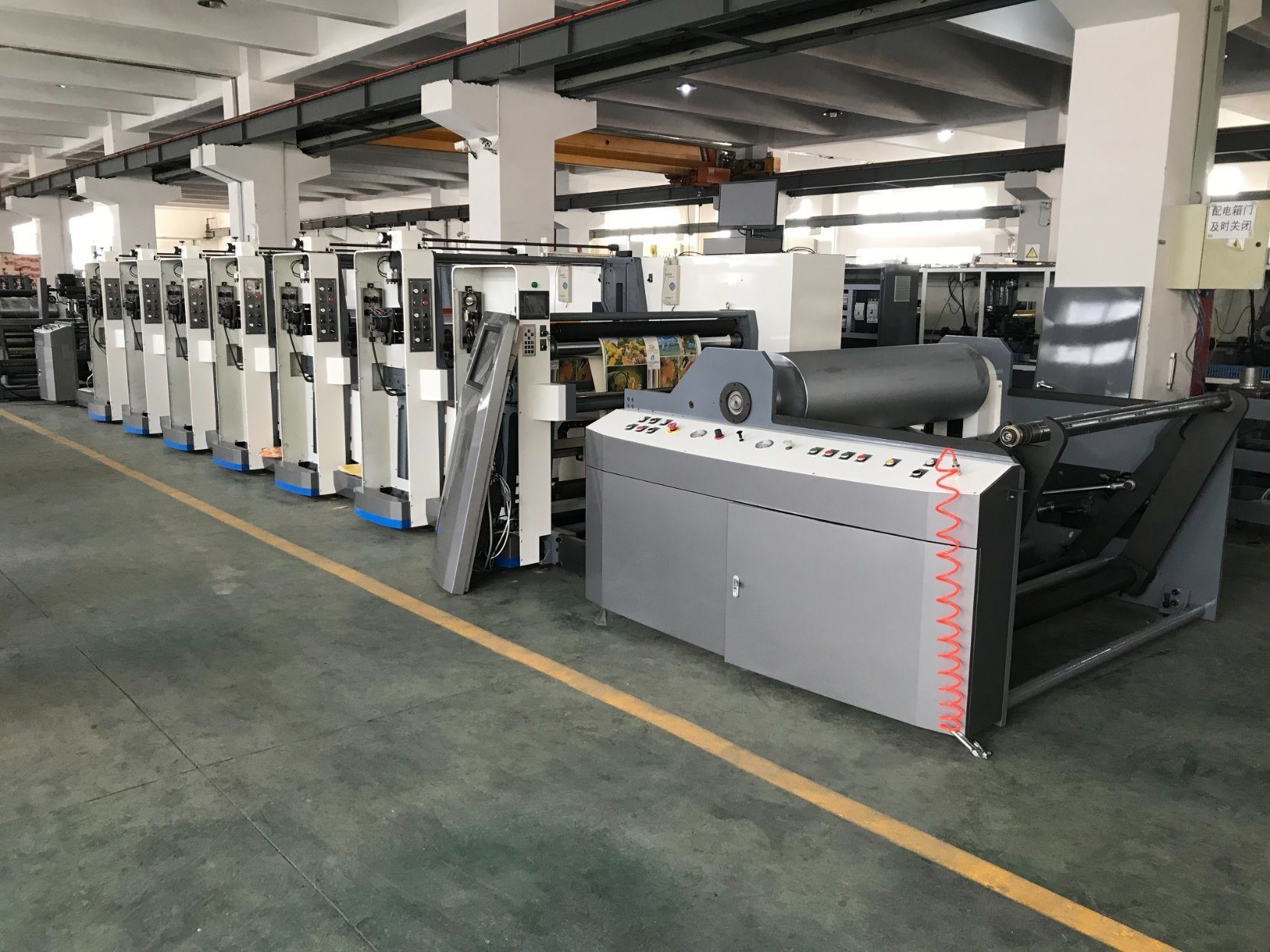

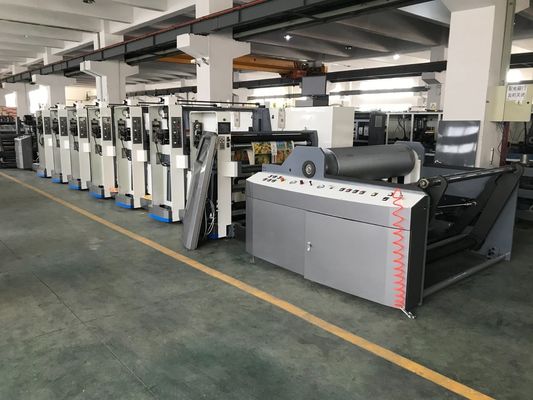

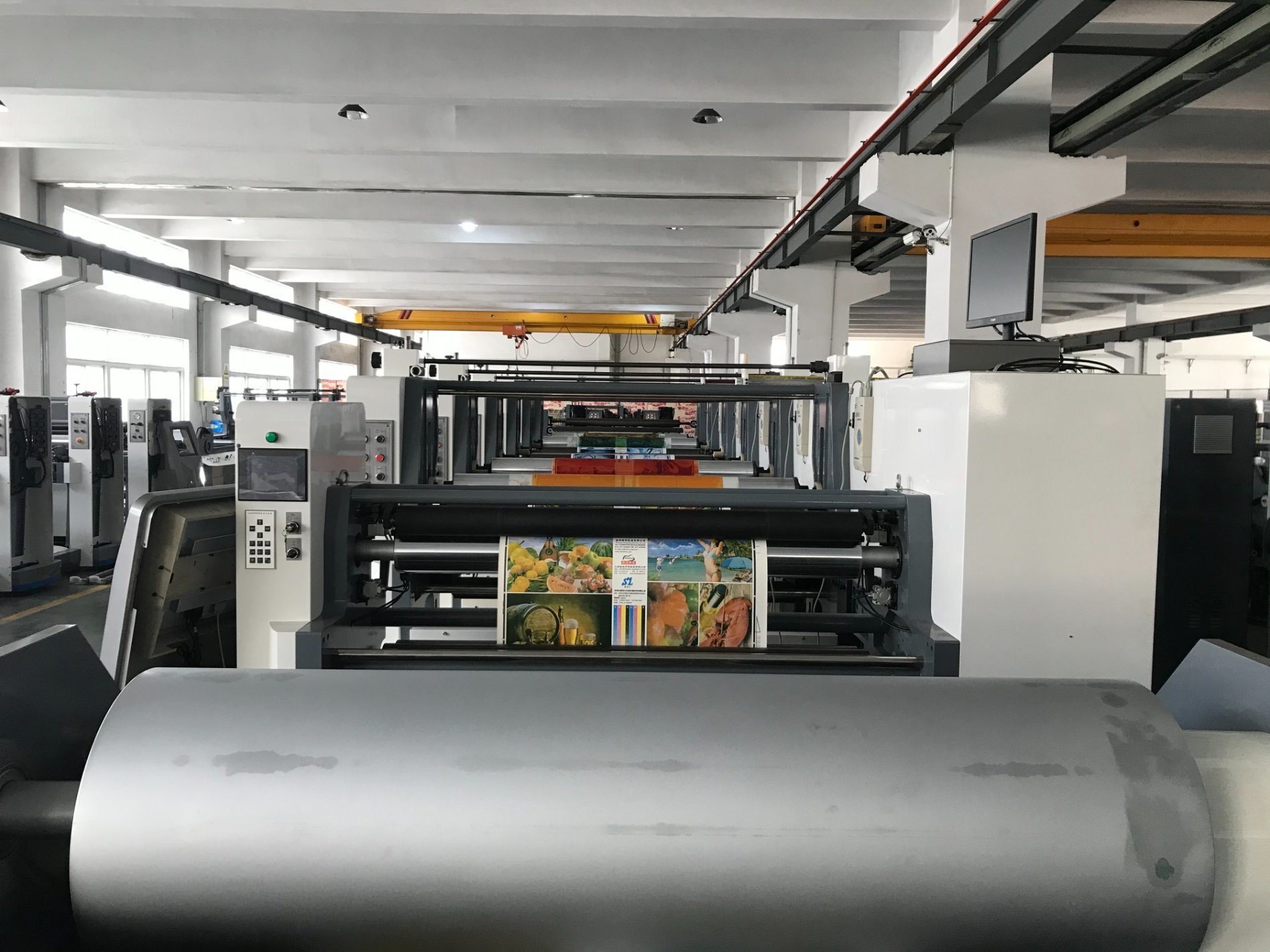

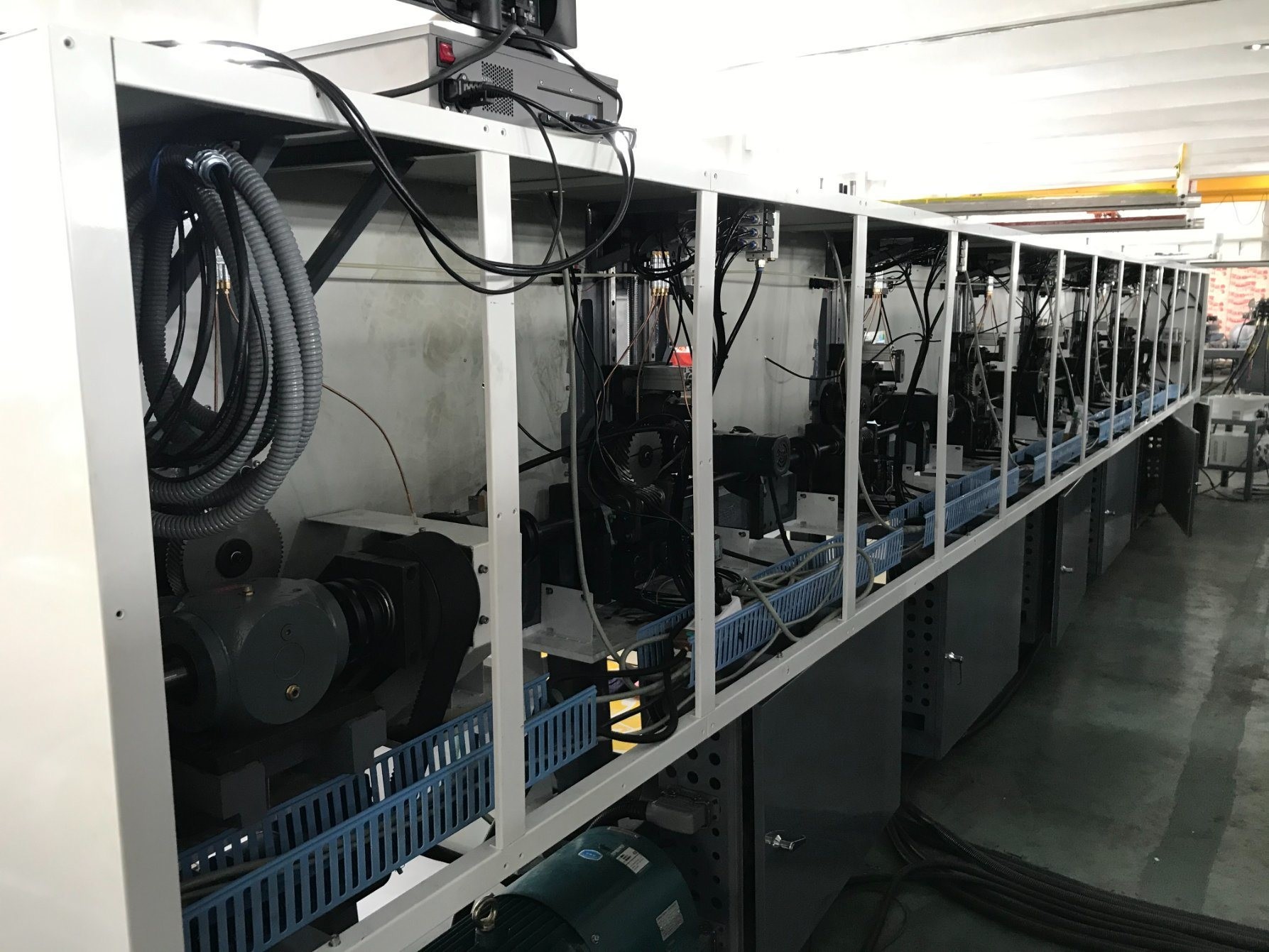

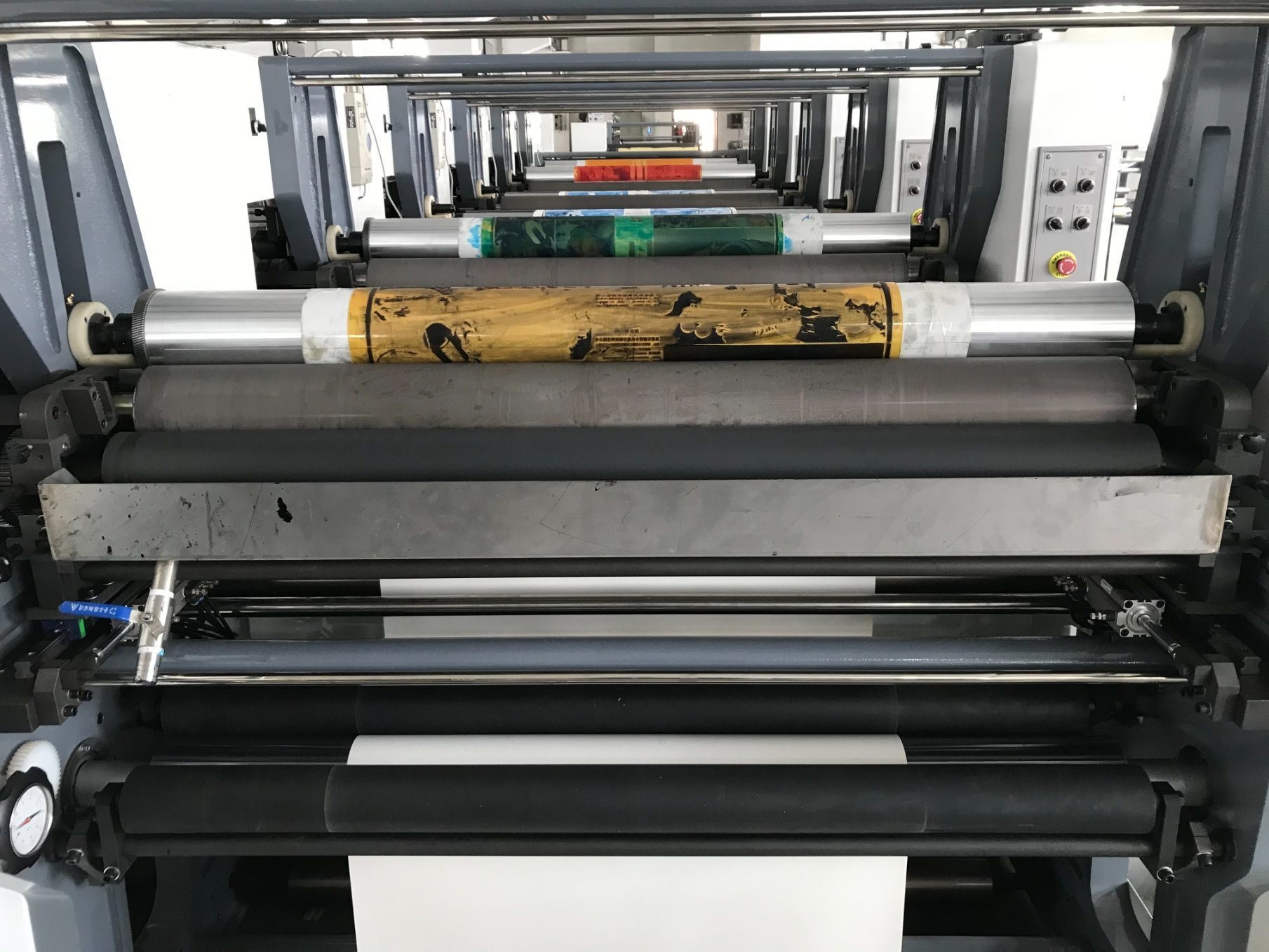

PE Coated Flexo Paper Printing Machine 100mm Web Roller Diameter And UV Dryer 3
PE Coated Flexo Paper Printing Machine 100mm Web Roller Diameter And UV Dryer 4
PE Coated Flexo Paper Printing Machine 100mm Web Roller Diameter And UV Dryer 5
PE Coated Flexo Paper Printing Machine 100mm Web Roller Diameter And UV Dryer 6
PE Coated Flexo Paper Printing Machine 100mm Web Roller Diameter And UV Dryer 7

Product Parameters

Technical Parameters:

Specification 650 920 1020 1220 1320
Max. Web Width 650mm 920mm 1020mm 1220mm 1320mm
Max. Printing Width 600mm 900mm 1000mm 1200mm 1300mm
Max Die-Cutting Width 600mm 900mm 1000mm 1200mm 1300mm
Printing Repeat 286-1200mm 286-1200mm 286-1200mm 286-1200mm 286-1200mm
Max.Unwinder Diameter 1524mm 1524mm 1524mm 1524mm
Max.Rewinder Diameter 1524mm 1524mm 1524mm 1524mm 1524mm
Gearing 1/8cp 1/8cp 1/8cp 1/8cp 1/8cp
Max Printing Speed 150m/min 150m/min 150m/min 150m/min 150m/min
Diameter of web roller 100mm 100mm 100mm 100mm 100mm
Drying mode Warm Drying/IR Drying/ UV Drying
Oil used Aqueous ink/ UV Ink
Power Requirement 380V 3PH 50Hz
Substrate 17g copy paper, cotton paper, 80-450g chrome paper, aluminum-foil paper, BOPP, PET, paper board, kraft paper

Packaging & Shipping


PE Coated Flexo Paper Printing Machine 100mm Web Roller Diameter And UV Dryer 8
PE Coated Flexo Paper Printing Machine 100mm Web Roller Diameter And UV Dryer 9
PE Coated Flexo Paper Printing Machine 100mm Web Roller Diameter And UV Dryer 10
PE Coated Flexo Paper Printing Machine 100mm Web Roller Diameter And UV Dryer 11
