Name: Fully Automatic Kraft Paper Flexo Printer With Water Based Ink 6 Colors Petal Type
Brand: Wenzhou Fengming Machinery Co., Ltd.
SKU: FM-C1450-2250
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Model NO.: FM-C1450-2250

Ink Used: Water Based Ink

Printing Page: Single Faced

Printing Color: 6 Colors

Dryer: UV& IR

Timer: 24-hour

Auto Restart: Yes

Warranty: 1 Year Limited

Highlight:

Fully Automatic Kraft Paper Flexo Printer

Water Based Ink Kraft Paper Flexo Printer

Water Based Ink Digital Flexo Press

Basic Infomation

Place of Origin: China

Brand Name: Fengming

Certification: CE certification

Model Number: FM-C1450-2250

Payment & Shipping Terms

Packaging Details: Standard export wooden pallet with film package.

Delivery Time: 25 days

Payment Terms: L/C, T/T

Supply Ability: 10 Sets/month

Gallery

Fully Automatic Kraft Paper Flexo Printer With Water Based Ink 6 Colors Petal Type

Product Description

Fully Automatic Kraft Paper Flexo Printer with Water Based Ink 6 Colors Petal Type

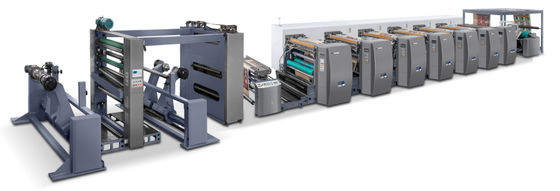

FM-C1450-2250 Flexographic Printing Machine(Petal Type)

Petal type plate mounting, anilox and cylinder with quick change structure.
Printing unit easy operation, cylinder and anilox pressing once successfuly.
Plate full servo shaftless transmission, automatically pre-print, time saving & material saving.
Registering remains the same during lifting process.

Application Object
Suitable for eco-friendly packaging, such as the paper bag used for food and healthcare industry, paper box, paper cup, the pre-printing carton of paper bag, bag courier, milk carton medicine use.

Paper Used
Kraft paper, paperboard, coated paper, liner paper, laminated paper, multilayer composite paper, carton board materials ect.

Technical Parameters:

Specification	1450	1650	1850	2250
Max. Web Width	1450mm	1650mm	1850mm	2250mm
Max. Printing Width	1430mm	1630mm	1830mm	2200mm
Max Die-Cutting Width	1430mm	1630mm	1830mm	2200mm
Printing Repeat	600-1600mm	600-1600mm	600-1600mm	600-1600mm
Max.Unwinder Diameter	1524mm	1524mm	1524mm	1524mm
Max.Rewinder Diameter	1524mm	1524mm	1524mm	1524mm
Gearing	1/8cp	1/8cp	1/8cp	1/8cp
Max Printing Speed	160-220m/min	160-220m/min	160-220m/min	160-220m/min
Diameter of web roller	100mm	100mm	100mm	100mm
Drying mode	Warm Drying/IR Drying/ UV Drying
Oil used	Aqueous ink/ UV Ink
Power Requirement	380V 3PH 50Hz
Substrate	17g copy paper, cotton paper, 80-450g chrome paper, aluminum-foil paper, BOPP, PET, paper board, kraft paper
