Name: Automated Paper Cup Flexo Printing Machine Unit Type Flexographic Printing Press
Brand: Wenzhou Fengming Machinery Co., Ltd.
SKU: FM-A650
Price: 94,000.00 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Model NO.: FM-A650-1320

Application: Flexible Packaging Printing

Automatic Grade: Automatic

Printing Speed: 150m/mim

Max. Web Width: 650/920/1020/1220/1320mm

Max. Printing Width: 600/900/1000/1200/1270mm

Printing Repeat Length: 286-1200mm

Max. Unwinder & Rewinder Diameter: 1524mm

Gearing: 1/8cp

Max. Speed: 150m/Min

Diameter Of Web Roller: 100mm

Main Motor Power Supply: 11kw

Drying Mode: Hot Air Drying & IR Drying

Ink Used: Water Based Ink

Power Supply: 380V 3pH 50Hz

Printing Material: 60-350GSM Paper Roll

Transport Package: Wooden Pallet With Film Package

Specification: 1020mm

Trademark: Fengming

Origin: Zhejiang, China

HS Code: 8443160090

Supply Ability: 10 Sets / Month

Printing Page: Single Faced

Printing Color: 2 Colors

Anilox Roller: Ceramic Anilox Roller

Dryer: UV& IR

Embossing Structure: Rotary Letterpress

Structure: Unit Type

Customization: Available | Customized Request

Highlight:

Automated Paper Cup Flexo Printing Machine

Automated Flexographic Printing Press

Unit Type Flexographic Printing Press

Basic Infomation

Place of Origin: CHINA

Brand Name: FENGMING

Certification: CE

Model Number: FM-A650

Payment & Shipping Terms

Packaging Details: wooden pallet

Delivery Time: 30 working days

Payment Terms: T/T, L/C

Supply Ability: 15 sets

Gallery

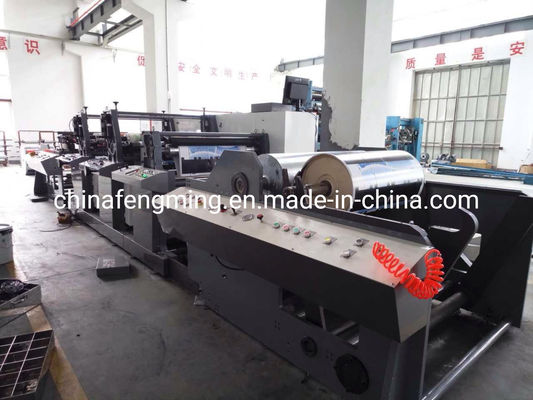

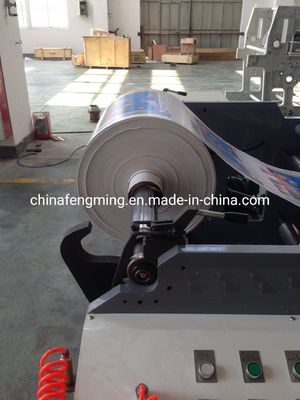

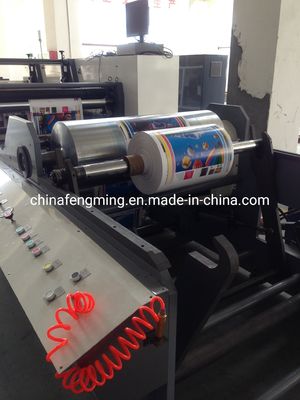

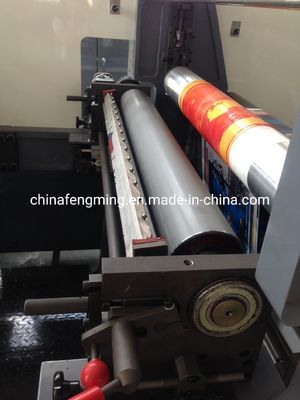

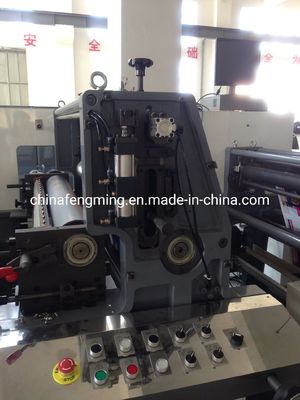

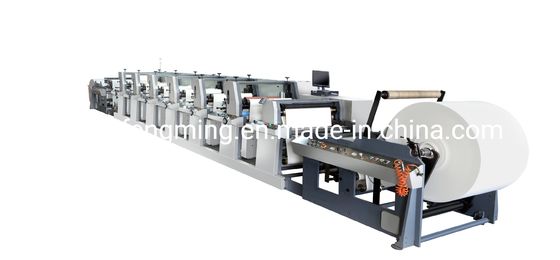

Automated Paper Cup Flexo Printing Machine Unit Type Flexographic Printing Press

Product Description

Fengming's Unit Type Structure FM-A650-1320 Flexo Press Printing Machine for Printing

FM-650-920-1320 Flexographic Printing Machine

Application Object

Suitable for eco-friendly packaging, such as the paper bag used for food and healthcare industry, paper box, paper cup, the pre-printing carton of paper bag, bag courier, milk carton medicine use.

Paper Used

Kraft paper, paperboard, coated paper, liner paper, laminated paper, multilayer composite paper, carton board materials ect.

Technical Parameters:

Specification	650	920	1020	1220	1320
Max. Web Width	650mm	920mm	1020mm	1220mm	1320mm
Max. Printing Width	600mm	900mm	1000mm	1200mm	1300mm
Max Die-Cutting Width	600mm	900mm	1000mm	1200mm	1300mm
Printing Repeat	286-1200mm	286-1200mm	286-1200mm	286-1200mm	286-1200mm
Max.Unwinder Diameter	1524mm	1524mm	1524mm	1524mm
Max.Rewinder Diameter	1524mm	1524mm	1524mm	1524mm	1524mm
Gearing	1/8cp	1/8cp	1/8cp	1/8cp	1/8cp
Max Printing Speed	150m/min	150m/min	150m/min	150m/min	150m/min
Diameter of web roller	100mm	100mm	100mm	100mm	100mm
Drying mode	Warm Drying/IR Drying/ UV Drying (optional)
Oil used	Water based ink/ UV Ink
Power Requirement	380V 3PH 50Hz
Substrate	17g copy paper, cotton paper, 80-400g art paper, aluminum-foil paper, paper board, kraft paper
