Name: Non Woven Bag Printing Machine Width 900mm And 60-350GSM Paper Roll
Brand: Wenzhou Fengming Machinery Co., Ltd.
SKU: FM-B1020
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Model NO.: FM-B

Structure: Unit Type

Application: Flexible Packaging Printing

Automatic Grade: Automatic

Printing Speed: 150m/mim

Max. Web Width: 920mm

Max. Printing Width: 900mm

Printing Repeat Length: 286-1200mm

Max. Unwinder/Rewinder Diameter: 1524mm

Gearing: 1/8 Cp

Max. Printing Speed: 150m/Min

Diameter Of Web Roller: 100mm

Main Motor Power: 11kw

Drying Mode: Hot Air Drying & IR Drying

Ink Used: Water Based Ink

Power Supply: 380V 3pH 50Hz

Printing Material: 60-350GSM Paper Roll

Transport Package: With Wooden Pallet Packing

Specification: CE

Trademark: Fengming

Origin: Zhejiang, China

HS Code: 8443160090

Supply Ability: 10 Sets / Month

Printing Page: Single Faced

Printing Color: 1 Color

Anilox Roller: Ceramic Anilox Roller

Dryer: UV& IR

Type: Flexo

Embossing Structure: Rotary Letterpress

Customization: Available | Customized Request

Highlight:

900mm roller printing machine

900mm non woven bag printing machine

60-350gsm roller printing machine

Basic Infomation

Place of Origin: CHINA

Brand Name: FENGMING

Certification: CE

Model Number: FM-B1020

Payment & Shipping Terms

Packaging Details: wooden pallet

Delivery Time: 30 working days

Payment Terms: T/T, L/C

Supply Ability: 15 sets

Gallery

Non Woven Bag Printing Machine Width 900mm And 60-350GSM Paper Roll

Product Description

Non Woven Bag Printing Machine for Max. Printing Width 900mm and 60-350GSM Paper Roll

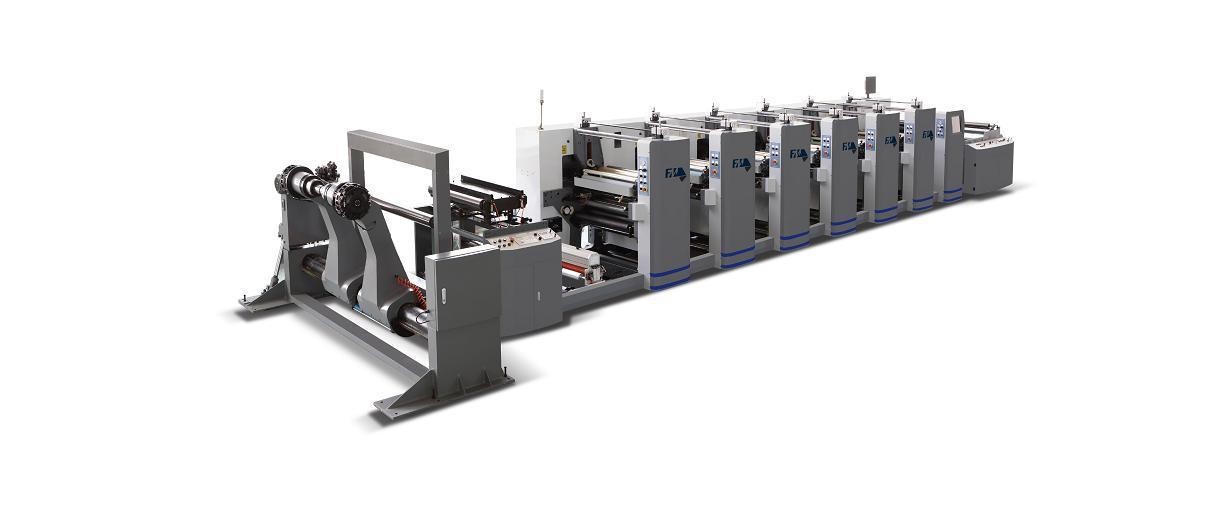

FM-B650-1320 MODEL FLEXOGRAPHIC PRINTING MACHINE

Non Woven Bag Printing Machine Width 900mm And 60-350GSM Paper Roll 1

Application Object
Suitable for eco-friendly packaging, such as the paper bag used for food and healthcare industry, paper box, paper cup, the pre-printing carton of paper bag, bag courier, milk carton medicine use.

Paper Used
Kraft paper, paperboard, coated paper, liner paper, laminated paper, multilayer composite paper, carton board materials ect.

Technical Parameters:

Specification	1020	1300	1350
Max. Web Width	1020mm	1300mm	1350mm
Max. Printing Width	1000mm	1270mm	1320mm
Printing Repeat	286-1200mm	286-1200mm	286-1200mm
Max.Unwinder Diameter	1524mm	1524mm	1524mm
Max.Rewinder Diameter	1524mm	1524mm	1524mm
Gearing	1/8cp	1/8cp	1/8cp
Max Printing Speed	150m/min	150m/min	150m/min
Diameter of web roller	100mm	100mm	100mm
Drying mode	Hot air Drying/IR Drying/ UV Drying
Substrate	80-400g chrome paper, aluminum-foil paper, BOPP, paper board, kraft paper.
