We are Flexo Press!

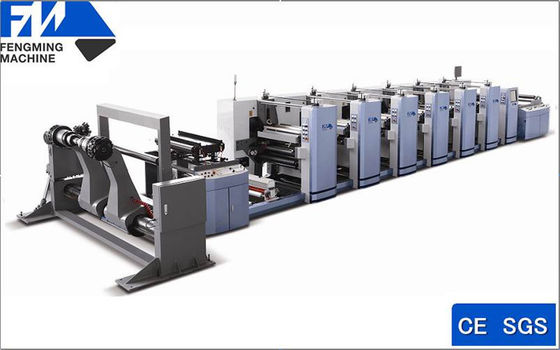

Multicolors High Speed Flexographic Printing Machine
Application:
High Speed Flexo Printing Machine is a flexo printing machine which adopts flexible photosensitive resin plates,rubber plates as the base material, anilox rollers for transferring ink,liquid ink for printing. It is controlled centrally by PLC system and generally consists of unwinding section, infeed section,printing section, drying section, outfeed section, rewinding section and control section.This machine is an ideal machine for printing paper cup, carton, paper bag, paper package, and so on.
Medium-Range Flexographic Press
| Specification |
35.5"(900) |
39.5"(1000) |
47.5"(1200) |
| Max. web width |
920mm |
1020mm |
1220mm |
| Max. printing width |
900mm |
1000mm |
1200mm |
| Printing repeat |
286-1200mm |
| Max. printing speed |
150m/min |
| Max. unwinder/rewinder diameter |
1524mm/1200mm |
| Drying mode |
a. warm drying b. IR drying c. UV drying |
| Ink used |
Water-based ink or UV ink |
| Power supply |
3 phase 380V 50Hz |
| Suitable material |
Light weight coated paper, carton board materials, kraft paper, chrome paper, PVC wall paper, laminated paper, white cardboard paper, aluminium-foil paper |
Wide-Range Flexographic Press
| Specification |
50.4"(1330) |
56.5"(1430) |
64.2"(1630) |
72.0"(1830) |
| Max. web width |
1350mm |
1450mm |
1650mm |
1850mm |
| Max. printing width |
1330mm |
1430mm |
1630mm |
1830mm |
| Printing repeat |
600-1600mm |
| Max. printing speed |
150m/min |
Max. unwinder /
rewinder diameter |
1524mm |
| Drying mode |
a. warm drying b. IR drying c. UV drying |
| Ink used |
Water-based ink or UV ink |
| Power supply |
3 phase 380V 50Hz |
| Suitable material |
17g copy paper, cotton paper, 40-450g paper, aluminium-foil paper, BOPP, PET, paper board, kraft paper |
Main characteristics:
1. Capable of inline cleaning dust, printing, and cutting
2. Eco-friendly printing, water based ink and UV ink used
3. Metal anilox rollers can be used for a long time, and can supply ink appropriately.
4. Warm drying, IR drying, UV drying are available
5. Closed loop tension control is used to make printing tension much more stable , and register much more accurate.
6. Automatically electronic web-guide system
7. Online printing register detection
8.Register system can be operated automatically or by manual.
Our service:
Top quality, competitive price, timely delivery.
Delivery: About 60 days after receiving 30% deposit by T/T.
Warrantee: One year guarantee, life-long maintence.
