Name: Energy Efficient Corrugated Paper Printing Machine Servo Control Flexographic Printing Machine
Brand: Wenzhou Fengming Machinery Co., Ltd.
SKU: FM-S1450
Price: 317,500.00 USD
Availability: InStock

Energy Efficient Corrugated Paper Printing Machine Servo Control Flexographic Printing Machine

MOQ

USD255000-380000/Set

Price

Features Gallery Product Description Request A Quote

Features

Specifications

Printing Width: 1200mm-2500mm

Printing Speed: 100m/min-200m/min

Max. Rewinding Diameter: 1500mm-2000mm

Printing Type: Flexographic Printing

Anilox Roller: Metal Anilox Roller

Power Supply: 380V/3Ph/50Hz

Max. Unwinding Diameter: 1500mm-2000mm

Ink Type: Water-based Ink

Printing Color: 1-6 Colors

Machine Weight: 10T-15T

Drying System: Electric Heating

Plate Roller Diameter: 480mm-600mm

Machine Dimension: 10m*3m*2.5m

Plate Thickness: 7mm-9mm

Highlight:

Energy Efficient Corrugated Paper Printing Machine

Servo Control Flexographic Printing Machine

Basic Infomation

Place of Origin: China

Brand Name: Fengming

Certification: CE certification

Model Number: FM-S1450

Payment & Shipping Terms

Packaging Details: Standard export wooden pallet with film package.

Delivery Time: 25 days

Payment Terms: L/C, T/T

Supply Ability: 10 Sets/month

Gallery

Energy Efficient Corrugated Paper Printing Machine Servo Control Flexographic Printing Machine

Product Description

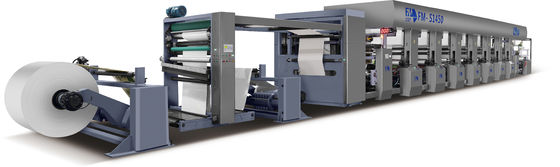

FM-S1450 Wide Web Paper Box Preprint Flexo Printing Machine with Servo Control

FM-S1450 Wide Web Paper Box Preprint Flexo Printing Machine - Servo Control MainCharacteristics

Energy Efficient Corrugated Paper Printing Machine Servo Control Flexographic Printing Machine 0
Wide Web Preprint Flexographic Printing Machine-Servo Control is suit for customer need, this kind machine using servo motor for control of 80- 400gsrn paper, printing width from 1450mm to 2250rnrn, printing repeat from 600mm to 1600mm, Max. Speed can be 220m/min, and suit for carton box pre-print, release paper and milk carton etc products. This kind of machine is ideal for printing ＆packing companies who have long-run order, order change faster and high printing quality requirement.

Technical Parameters:

Specification	1450	1650	1850	2250
Max. Web Width	1450mm	1650mm	1850mm	2250mm
Max. Printing Width	1430mm	1630mm	1830mm	2200mm
Max Die-Cutting Width	1430mm	1630mm	1830mm	2200mm
Printing Repeat	600-1600mm	600-1600mm	600-1600mm	600-1600mm
Max.Unwinder Diameter	1524mm	1524mm	1524mm	1524mm
Max.Rewinder Diameter	1524mm	1524mm	1524mm	1524mm
Gearing	1/8cp	1/8cp	1/8cp	1/8cp
Max Printing Speed	160-220m/min	160-220m/min	160-220m/min	160-220m/min
Diameter of web roller	100mm	100mm	100mm	100mm
Drying mode	Warm Drying/IR Drying/ UV Drying
Oil used	Aqueous ink/ UV Ink
Power Requirement	380V 3PH 50Hz
Substrate	17g copy paper, cotton paper, 80-450g chrome paper, aluminum-foil paper, BOPP, PET, paper board, kraft paper

Energy Efficient Corrugated Paper Printing Machine Servo Control Flexographic Printing Machine 1
