Single Faced Flexographic Printing Machine with Advanced Technology and 150m/Min Speed

1
MOQ
Single Faced Flexographic Printing Machine with Advanced Technology and 150m/Min Speed
Features Gallery Product Description Request A Quote
Features
Specifications
Model NO.: FM-B
Dryer: UV& IR
Type: Flexo
Embossing Structure: Rotary Letterpress
Structure: Unit Type
Application: Flexible Packaging Printing
Automatic Grade: Automatic
Printing Speed: 150m/mim
Printer Type: Flexographic Printing Machine
Product Model: FM-B
Automatic: Yes
Speed: 150m/Min
Transport Package: Main Part With Wooden Pallets
Specification: CE
Trademark: Fengming
Origin: Zhejiang, China
HS Code: 8443160090
Supply Ability: 5 Sets / Month
Printing Page: Single Faced
Printing Color: 6 Colors
Anilox Roller: Ceramic Anilox Roller
Customization: Available | Customized Request
Shipping Cost: About Shipping Cost And Estimated Delivery Time.
 : Initial Payment Full Payment
Currency: US$
Return&refunds: You Can Apply For A Refund Up To 30 Days After Receipt Of The Products.
Highlight:

150m/min unit type

,

150m/min flexographic printing machine 6 color

,

automatic unit type
Basic Infomation
Place of Origin: CHINA
Brand Name: FENGMING
Certification: CE
Model Number: FM-B1020
Payment & Shipping Terms
Packaging Details: wooden pallet
Delivery Time: 30 working days
Payment Terms: T/T, L/C
Supply Ability: 10 sets
Product Description

Single Faced Flexographic Printing Machine with Advanced Technology and 150m/Min Speed

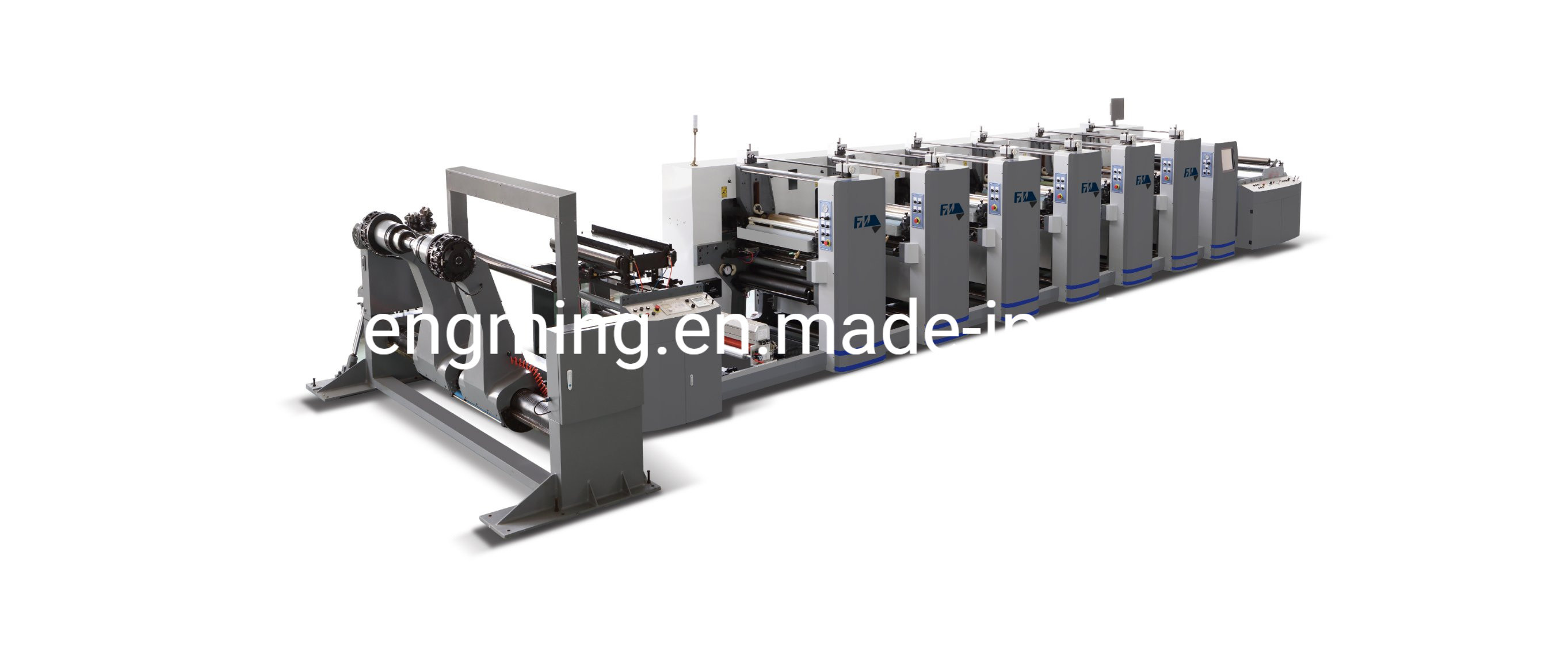

Single Faced Flexographic Printing Machine with Advanced Technology and 150m/Min Speed 0


Introduction

This machine is a printing machine which adopts flexible photosensitive resin plates, rubber plates as the base material, anilox rollers for transferring ink, liquid ink for printing. It is controlled centrally by PLC system and generally consists of unwinding section, infeed section, printing section, drying section, outfeed section, rewinding section and control section. This machine is an ideal machine for printing paper cup, carton, paper bag, paper package, and so on.



Features

Separate single-station unwinding rollstand with hydraulic lifting device; 3convex-type inflatable shaft for loading material (or shaftless loading); Automatically constant tension controller for unwinding tension control and EPC web guide control system for material alignment; Alarm function for reminding replacing material, stopping-machine device for detecting material broken and dust collection device.
The machine is mainly controlled by inverter-fed motor with synchronization belt.
Double rubber nipper roller is used for paper feeding, whose pressure can be adjusted by pneumatic cylinder; Taper tension control system ensures the color registration accuracy.
Ceramic anilox roller for ink transferring; Single-blade reverse ink-scraping system; Pneumatic clutch pressure for anilox rollers and plate rollers; Color Registration: Y axis (automatic), X axis (manually).
Automatic Preventing Clogging Function: When the machine stops, the anilox roller will rotate to prevent the ink on its surface from drying and blocking holes (meshes) on it.
Double rubber nipper roller is used for paper feeding, whose pressure can be adjusted by pneumatic cylinder; Static picture color detection system (Kesai) is adopted in this section.
Separate single-station rewinding rollstand with hydraulic lifting device; 3convex-type inflatable shaft for loading material (or shaftless loading); Stopping-machine device for detecting material broken.
Separate drying system (electric heating); I. R. Short-wave heating and drying system (the temperature is adjustable); Hot air and natural air drying system including exhaust fan and blower; Hot air recycling system, with adjustable device for in/outfeeding air; Central Exhaust System: Waste gas will be exhausted centrally by exhaust fan.
The whole machine is centrally controlled by PLC system, which has self-diagnosis function and monitors the machine status; The runnning speed can be adjusted at multiple points.

Max. Web Width 1020mm
Max. Printing Width 1000mm
Printing Repeat 286-1200mm
Max. Unwinder Diameter 1524mm
Max. Rewinder Diameter 1524mm
Gearing 1/8cp
Max. Printing Speed 150m/min
Diameter of Web Roller 100mm
Base Motor Power 11kw
Drying Mode a.Hot Air Drying b.IR Drying

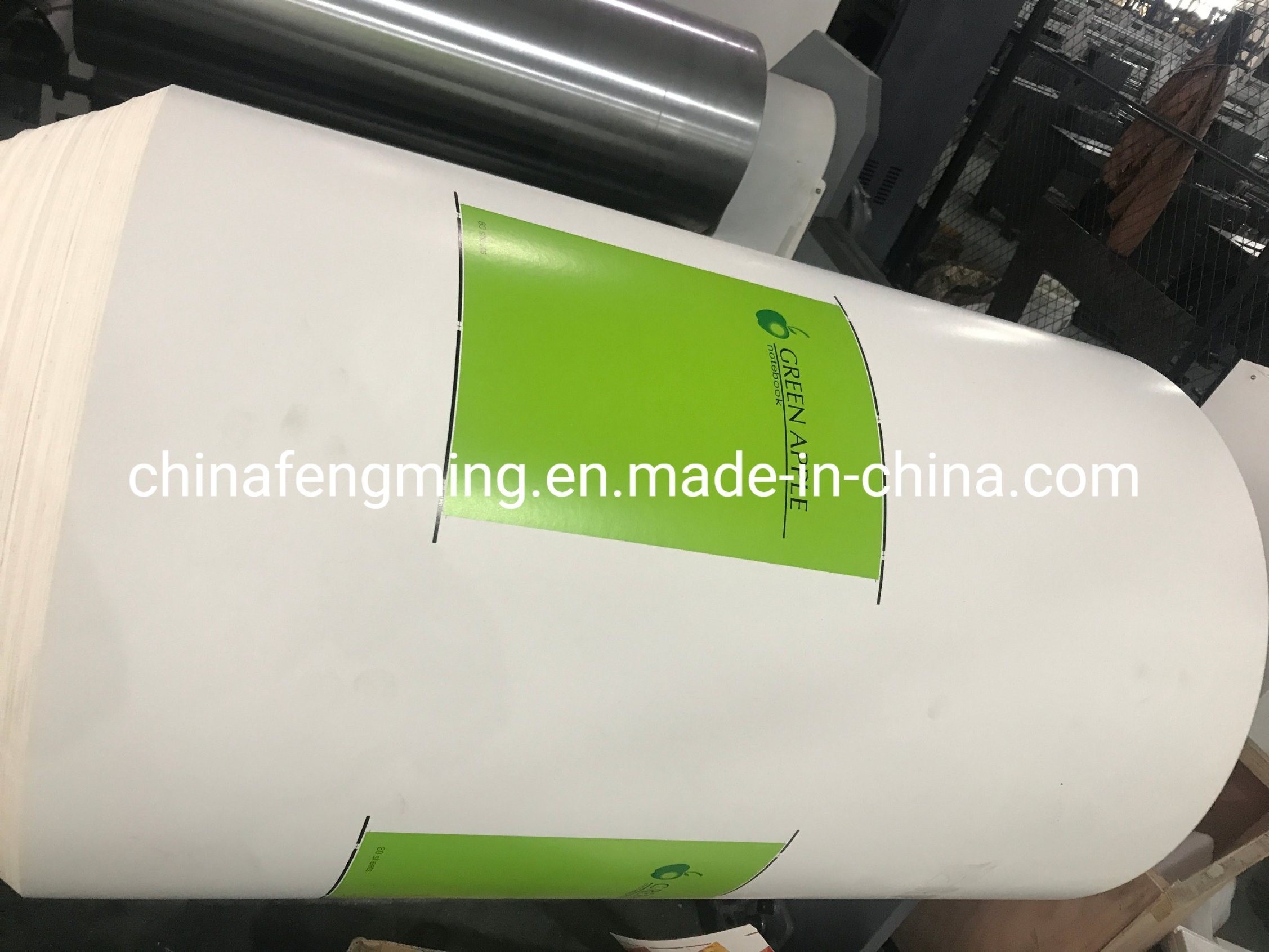

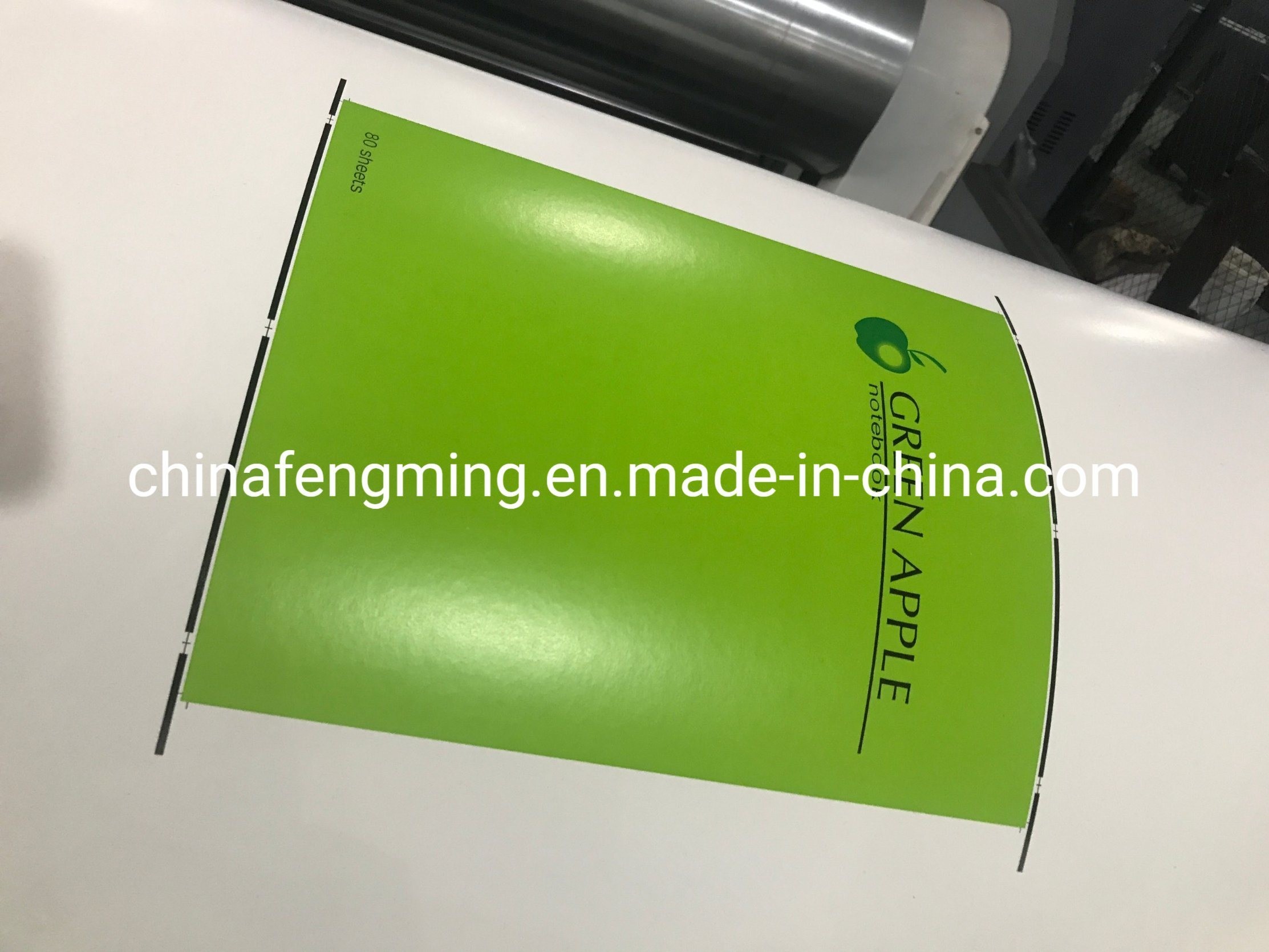

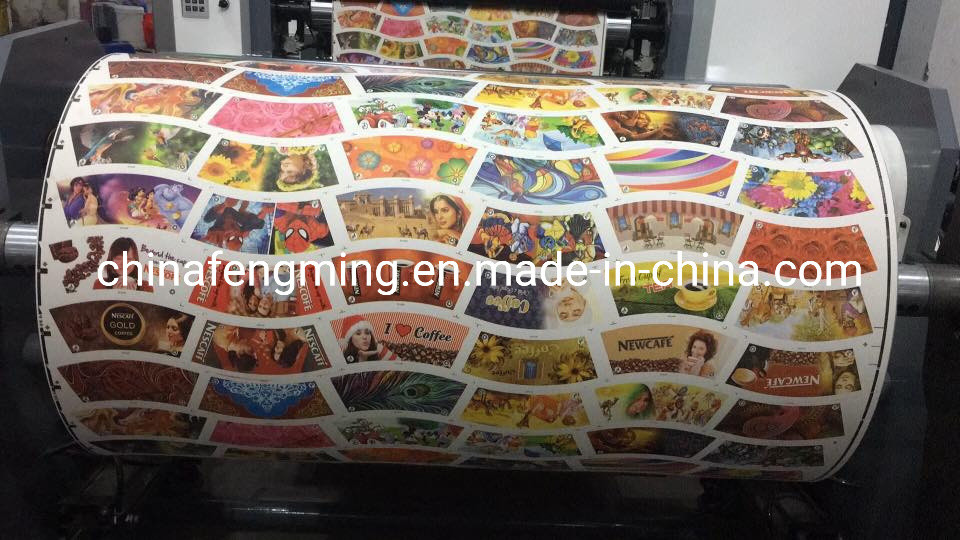

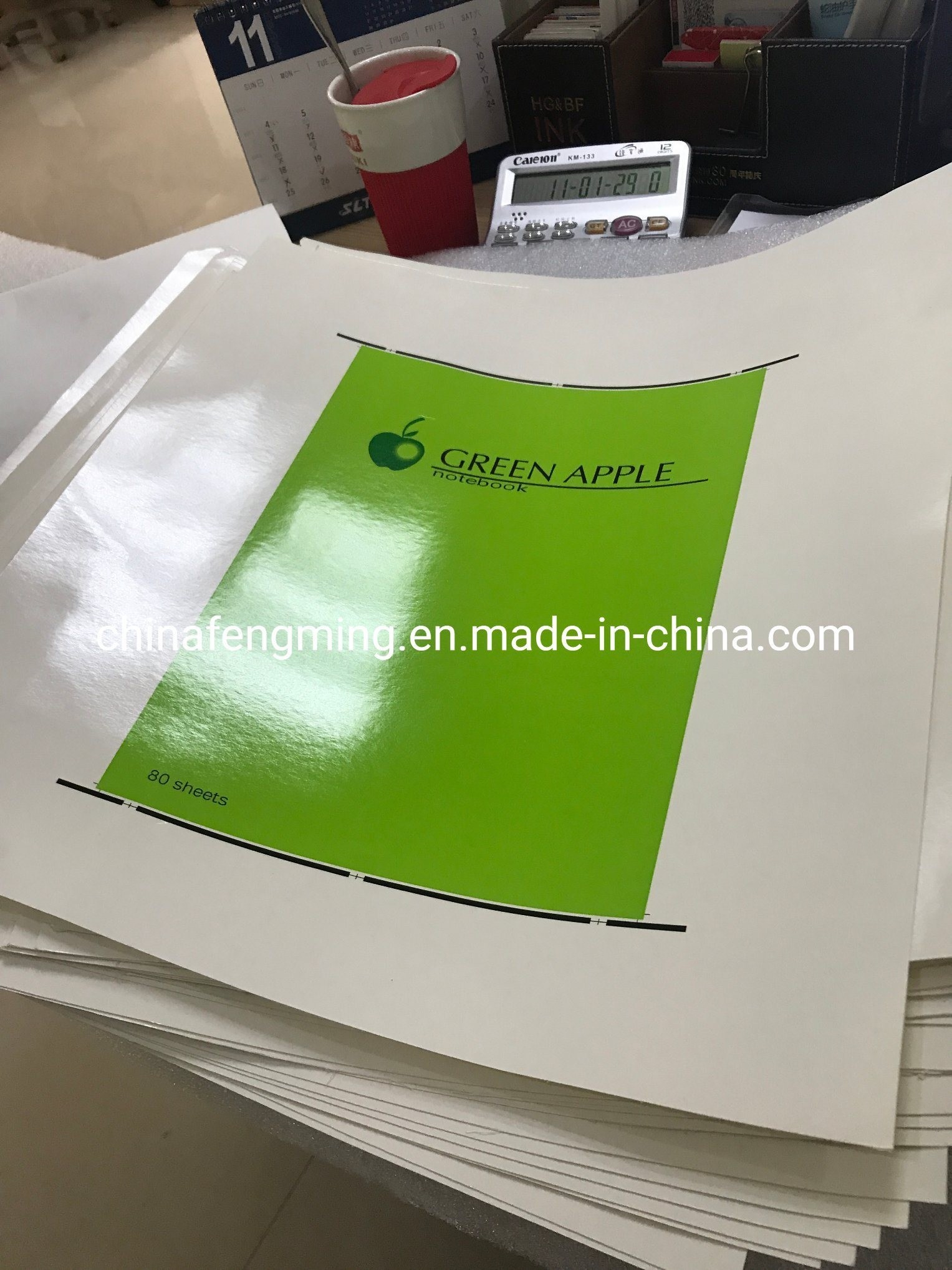

Single Faced Flexographic Printing Machine with Advanced Technology and 150m/Min Speed 1Single Faced Flexographic Printing Machine with Advanced Technology and 150m/Min Speed 2Single Faced Flexographic Printing Machine with Advanced Technology and 150m/Min Speed 3

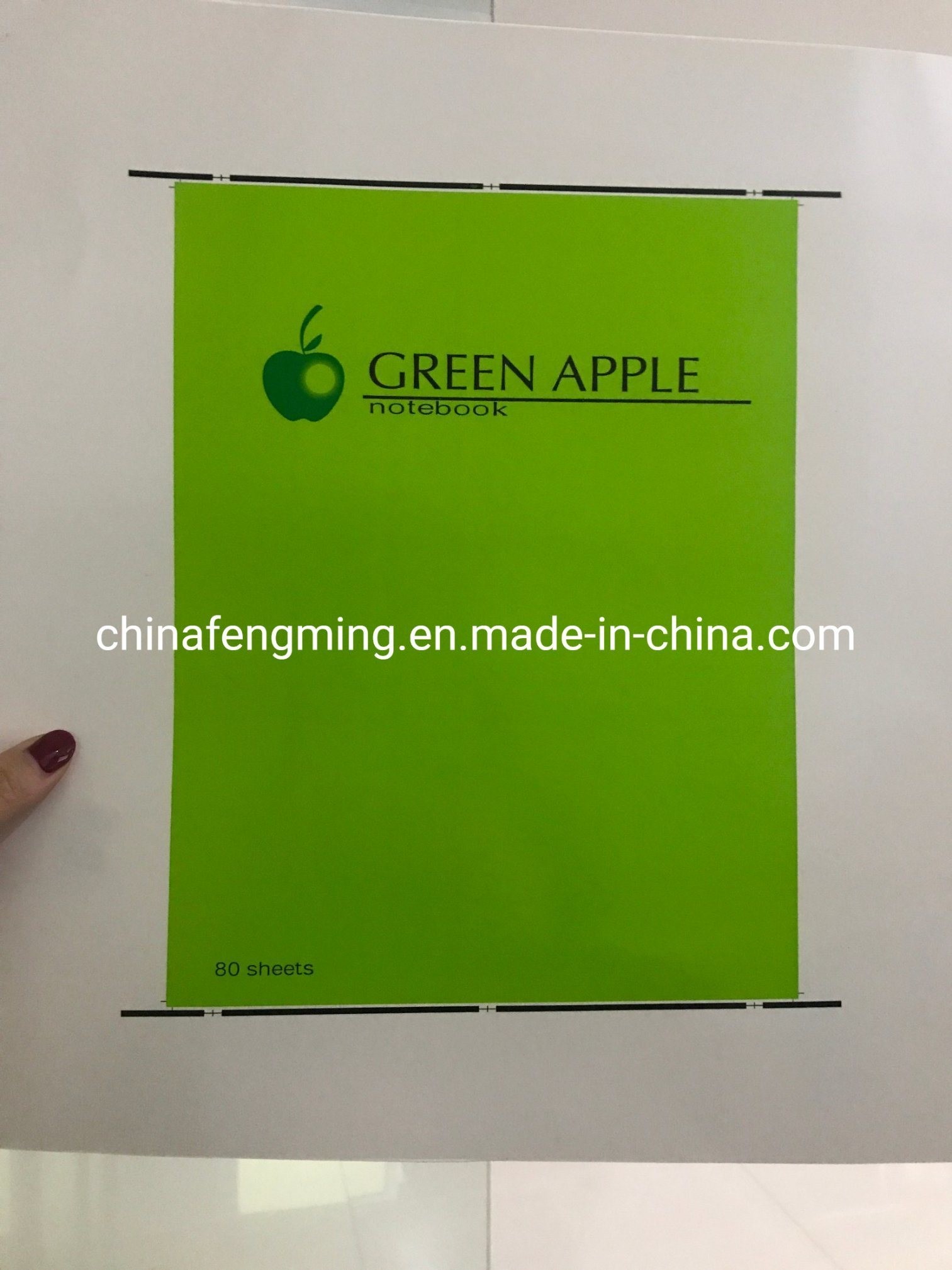

Single Faced Flexographic Printing Machine with Advanced Technology and 150m/Min Speed 4
