Paper Cup/ Paper Bag Printing Machine with 4/5/6/7/8 Colors Dryer UV IR Dryer and Dryer

1
MOQ
Paper Cup/ Paper Bag Printing Machine with 4/5/6/7/8 Colors Dryer UV IR Dryer and Dryer
Features Gallery Product Description Request A Quote
Features
Specifications
Model NO.: FM-CS
Structure: Unit Type
Application: Flexible Packaging Printing
Automatic Grade: Automatic
Printing Speed: 200m/min
Max. Web Width: 1370mm
Max. Printing Width: 1350mm
Printing Repeat Length: 300-1200mm
Max.Unwinder Diameter / Rewinder: 1524mm
Gearing: 1/8cp
Diameter Of Web Roller: 100mm
Drying Mode: Hot Air Drying & IR Drying / UV Drying
Printing Material: 60-350GSM Paper Roll
Transport Package: Wooden Pallet With Film Package
Specification: CE ISO9001
Trademark: Fengming
Origin: China
HS Code: 8443160090
Supply Ability: 5 Sets / Month
Printing Page: Single Faced
Printing Color: 8 Colors
Anilox Roller: Ceramic Anilox Roller
Dryer: UV& IR
Type: Flexo
Embossing Structure: Rotary Letterpress
Customization: Available | Customized Request
Highlight:

paper cup paper bag printer machine

,

paper cup paper bag printing machine

,

1/8cp paper bag printer machine
Basic Infomation
Place of Origin: CHINA
Brand Name: FENGMING
Certification: CE
Model Number: FM-CS1020
Payment & Shipping Terms
Packaging Details: wooden pallet
Delivery Time: 30 working days
Payment Terms: T/T, L/C
Supply Ability: 15 sets
Product Description

Paper Cup/ Paper Bag Printing Machine with 4/5/6/7/8 Colors Dryer UV IR Dryer and Dryer

Paper Cup/ Paper Bag Printing Machine with 4/5/6/7/8 Colors Dryer UV IR Dryer and Dryer 0

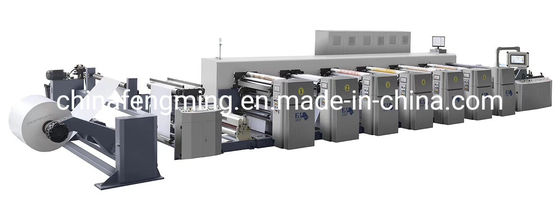

FM-CS1020-1350 Flexographic Printing Machine (Petal Type)

  1. Petal type plate mounting, anilox and cylinder with quick change structure.
  2. Printing unit easy operation, cylinder and anilox pressing once successfuly.
  3. Plate full servo shaftless transmission, automatically pre-print, time saving & material saving.
  4. Registering remains the same during lifting process.
  5. Register position automatic memory function.

Applications:
Suitable for eco-friendly packaging, such as the paper bag used for food and healthcare industry, paper box, paper cup, the pre-printing carton of paper bag, bag courier, milk carton medicine use.

Paper Used:
Kraft paper, paperboard, coated paper, liner paper, laminated paper, multilayer composite paper, carton board materials ect.

Technical Parameters:
Specification 1020 1300 1350
Max. Web Width 1020mm 1300mm 1370mm
Max. Printing Width 1000mm 1270mm 1350mm
Printing Repeat 300-1200mm 300-1200mm 300-1200mm
Max.Unwinder Diameter 1524mm 1524mm 1524mm
Max.Rewinder Diameter 1524mm 1524mm 1524mm
Gearing 1/8cp 1/8cp 1/8cp
Max Printing Speed 160-200m/min 160-200m/min 160-200m/min
Diameter of web roller 100mm 100mm 100mm
Drying mode Hot Air Drying/IR Drying/ UV Drying
Printing Material 60-300gsm paper roll

Paper Cup/ Paper Bag Printing Machine with 4/5/6/7/8 Colors Dryer UV IR Dryer and Dryer 1
Paper Cup/ Paper Bag Printing Machine with 4/5/6/7/8 Colors Dryer UV IR Dryer and Dryer 2
Paper Cup/ Paper Bag Printing Machine with 4/5/6/7/8 Colors Dryer UV IR Dryer and Dryer 3
Paper Cup/ Paper Bag Printing Machine with 4/5/6/7/8 Colors Dryer UV IR Dryer and Dryer 4
