Name: Customizable 6 Color Flexo Print Machine for and Performance Auto Registration Shoe Bag
Brand: Wenzhou Fengming Machinery Co., Ltd.
SKU: FM-TS-650
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Model NO.: FM-B

Structure: Unit Type

Application: Flexible Packaging Printing

Automatic Grade: Automatic

Printing Speed: 150m/mim

Max. Web Width: 1020mm

Max, Printing Width: 1000mm

Printing Repeat Length: 286-1200mm

Max. Unwinder & Rewinder: 1524mm

Gearing: 1/8cp

Max. Speed: 150m/Min

Diameter Of Web Roller: 100mm

Drying Mode: Hot Air Drying & IR Drying

Ink Used: Water-Based Ink

Printing Material: 60-400GSM Paper Roll

Transport Package: Wooden Pallet With Film Package

Specification: CE

Trademark: Fengming

Origin: Zhejiang, China

HS Code: 8443160090

Supply Ability: 10 Sets/Month

Printing Page: Single Faced

Printing Color: 4 Colors

Anilox Roller: Ceramic Anilox Roller

Dryer: UV& IR

Type: Flexo

Embossing Structure: Rotary Letterpress

Customization: Available | Customized Request

Highlight:

1/8cp unit type

100mm unit type

1/8cp flexographic printing machine 6 color

Basic Infomation

Place of Origin: CHINA

Brand Name: fengming

Certification: CE

Model Number: FM-TS-650

Payment & Shipping Terms

Packaging Details: wooden pallet

Delivery Time: 60

Payment Terms: L/C, T/T

Supply Ability: 10

Gallery

Customizable 6 Color Flexo Print Machine for and Performance Auto Registration Shoe Bag

Product Description

Customizable 6 Color Flexo Print Machine for and Performance Auto Registration Shoe Bag

Application Object
Suitable for eco-friendly packaging, such as the paper bag used for food and healthcare industry, paper box, paper cup, the pre-printing carton of paper bag, bag courier, milk carton medicine use.

Paper Used
Kraft paper, paperboard, coated paper, liner paper, laminated paper, multilayer composite paper, carton board materials ect.

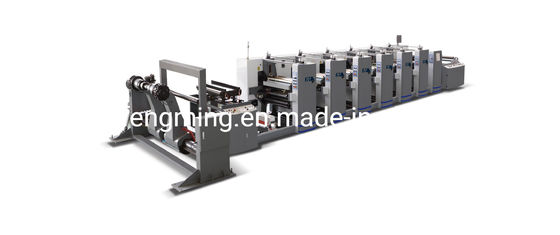

FM-B650-920-1320 Flexographic Printing Machine

Technical Parameters:

Specification	650	920	1020	1220	1320
Max. Web Width	650mm	920mm	1020mm	1220mm	1320mm
Max. Printing Width	600mm	900mm	1000mm	1200mm	1300mm
Max Die-Cutting Width	600mm	900mm	1000mm	1200mm	1300mm
Printing Repeat	286-1200mm	286-1200mm	286-1200mm	286-1200mm	286-1200mm
Max.Unwinder Diameter	1524mm	1524mm	1524mm	1524mm
Max.Rewinder Diameter	1524mm	1524mm	1524mm	1524mm	1524mm
Gearing	1/8cp	1/8cp	1/8cp	1/8cp	1/8cp
Max Printing Speed	150m/min	150m/min	150m/min	150m/min	150m/min
Diameter of web roller	100mm	100mm	100mm	100mm	100mm
Drying mode	Hot Air Drying/IR Drying/ UV Drying
Oil used	Aqueous ink/ UV Ink
Power Requirement	380V 3PH 50Hz
Substrate	17g copy paper, cotton paper, 80-400g art paper, aluminum-foil paper, paper board, kraft paper
