Name: Paper Material Flexo Printing Machine with Advanced UV IR Dryer and Hot Air Drying
Brand: Wenzhou Fengming Machinery Co., Ltd.
SKU: FM-B1020
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Model NO.: FM-B1020

Dryer: UV& IR

Type: Flexo

Embossing Structure: Rotary Letterpress

Structure: Unit Type

Application: Flexible Packaging Printing

Automatic Grade: Automatic

Printing Speed: 150m/mim

Max. Web Width: 1020mm

Max. Printing Width: 1000mm

Printing Repeat Length: 286-1200mm

Max. Unwinder/ Rewinder Diamter: 1524mm

Gearing: 1/8

Max. Speed: 150m/Min

Diameter Of Web Roller: 100mm

Main Motor Power: 11kw

Drying Mode: Hor Air Drying & IR Drying

Ink Used: Water Based Ink

Power Supply: 380V / 3pH / 50Hz

Printing Material: 60-400GSM Paper Roll

Transport Package: Wooden Pallet With Film Package

Specification: CE

Trademark: Fengming

Origin: Zhejiang, China

HS Code: 8443160090

Supply Ability: 10 Sets/Month

Printing Page: Single Faced

Printing Color: 6 Colors

Anilox Roller: Ceramic Anilox Roller

Customization: Available | Customized Request

Shipping Cost: About Shipping Cost And Estimated Delivery Time.

: Initial Payment Full Payment

Currency: US$

Return&refunds: You Can Apply For A Refund Up To 30 Days After Receipt Of The Products.

Highlight:

3ph unit type

380v unit type

3ph flexographic printing machine 6 color

Basic Infomation

Place of Origin: CHINA

Brand Name: FENGMING

Certification: CE

Model Number: FM-B1020

Payment & Shipping Terms

Packaging Details: wooden pallet

Delivery Time: 30 working days

Payment Terms: T/T,L/C

Supply Ability: 15 sets

Gallery

Paper Material Flexo Printing Machine with Advanced UV IR Dryer and Hot Air Drying

Product Description

Paper Material Flexo Printing Machine with Advanced UV IR Dryer and Hot Air Drying

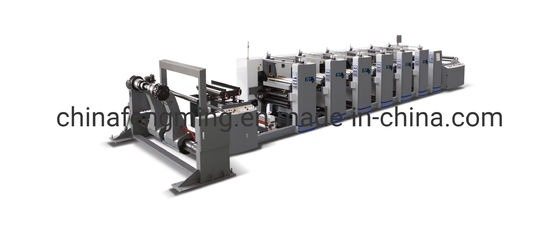

FM-B650-B1320 Flexographic Printing Machine

Paper Material Flexo Printing Machine with Advanced UV IR Dryer and Hot Air Drying 0

Application Object
Suitable for eco-friendly packaging, such as the paper bag used for food and healthcare industry, paper box, paper cup, the pre-printing carton of paper bag, bag courier, milk carton medicine use.

Paper Used
Kraft paper, paperboard, coated paper, liner paper, laminated paper, multilayer composite paper, carton board materials ect.

Technical Parameters:

Specification	650	920	1020	1220	1320
Max. Web Width	650mm	920mm	1020mm	1220mm	1320mm
Max. Printing Width	600mm	900mm	1000mm	1200mm	1270mm
Printing Repeat	286-1200mm	286-1200mm	286-1200mm	286-1200mm	286-1200mm
Max.Unwinder Diameter	1524mm	1524mm	1524mm	1524mm	1524mm
Max.Rewinder Diameter	1524mm	1524mm	1524mm	1524mm	1524mm
Gearing	1/8cp	1/8cp	1/8cp	1/8cp	1/8cp
Max Printing Speed	150m/min	150m/min	150m/min	150m/min	150m/min
Diameter of web roller	100mm	100mm	100mm	100mm	100mm
Drying mode	Hot Air Drying/IR Drying/ UV Drying (Optional)
Oil used	Water based ink/ UV ink
Power Requirement	380V 3PH 50Hz
Substrate	17gsm copy paper, cotton paper, 60-400g art paper, aluminum-foil paper, paper board, kraft paper
