Name: Food Wrapping Paper Coating Equipment 150m/Min With Patented Water Cooling Rollers
Brand: Wenzhou Fengming Machinery Co., Ltd.
SKU: FM-L1200
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Model NO.: FM-L1200

Max. Waxing Width: 1200mm

Max. Unwinder & Rewinder Diameter: 1524mm

Max. Wax Speed: 150m/Min

Waxing Mode: Wax Hot Melting

Applicable Material: Sweets Oaper, Hamburger Paper, Kraft Paper P

Material Thickness: 28-300GSM Paper

Max. Web Width: 1220mm

Highlight:

Food Wrapping Paper Coating Equipment

150m/Min Paper Coating Equipment

150m/Min Wax Coating Equipment

Basic Infomation

Place of Origin: China

Brand Name: Fengming

Certification: CE certification

Model Number: FM-L1200

Payment & Shipping Terms

Packaging Details: Standard export wooden pallet with film package.

Delivery Time: 25 days

Payment Terms: L/C,T/T

Supply Ability: 20 Sets/month

Gallery

Food Wrapping Paper Coating Equipment 150m/Min With Patented Water Cooling Rollers

Product Description

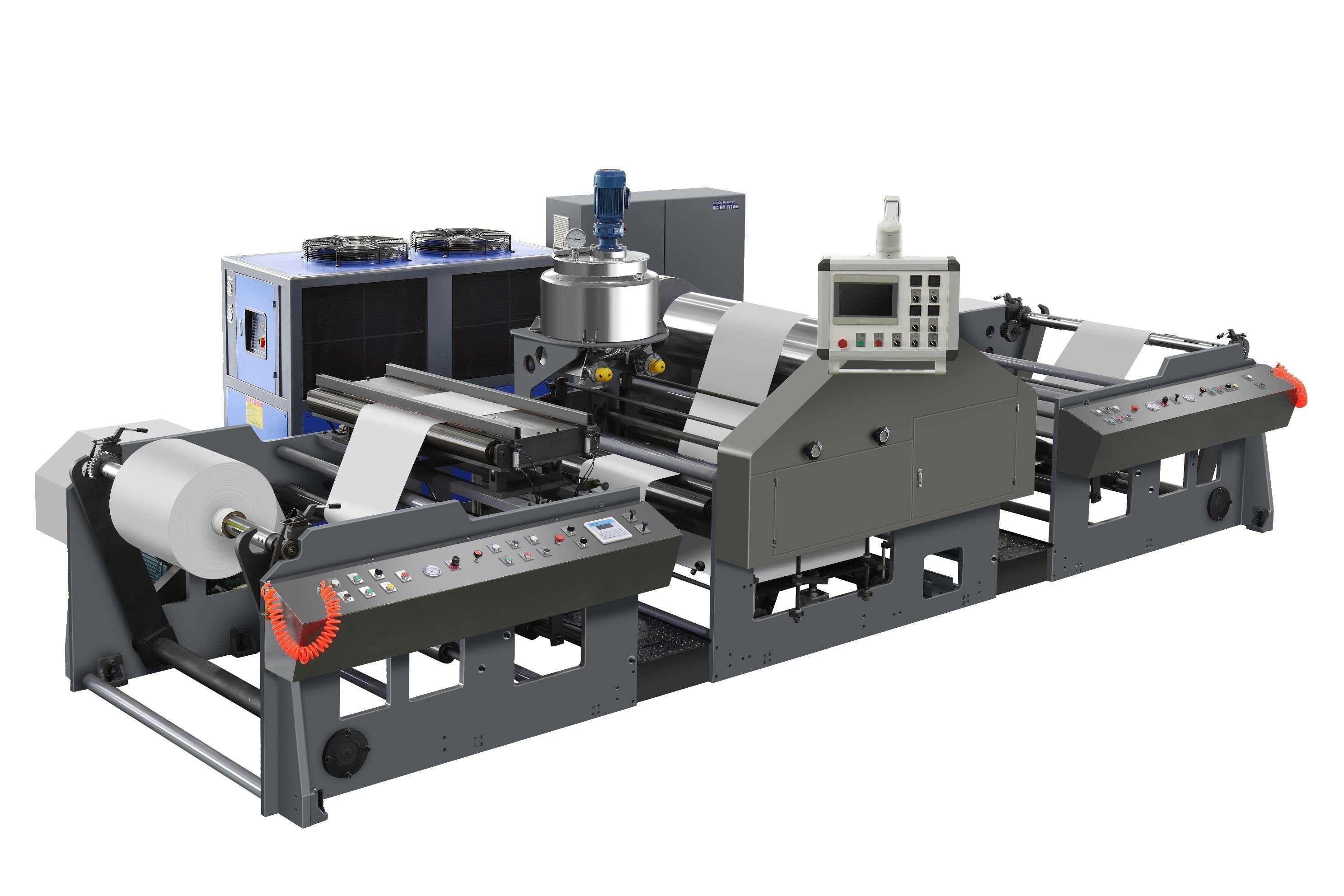

FM-L1200 Food Wrapping Paper Wax Coating Machine With Patented Water Cooling Rollers

High Speed Wax Coating Machine

MAIN CHARACTERISTICS:

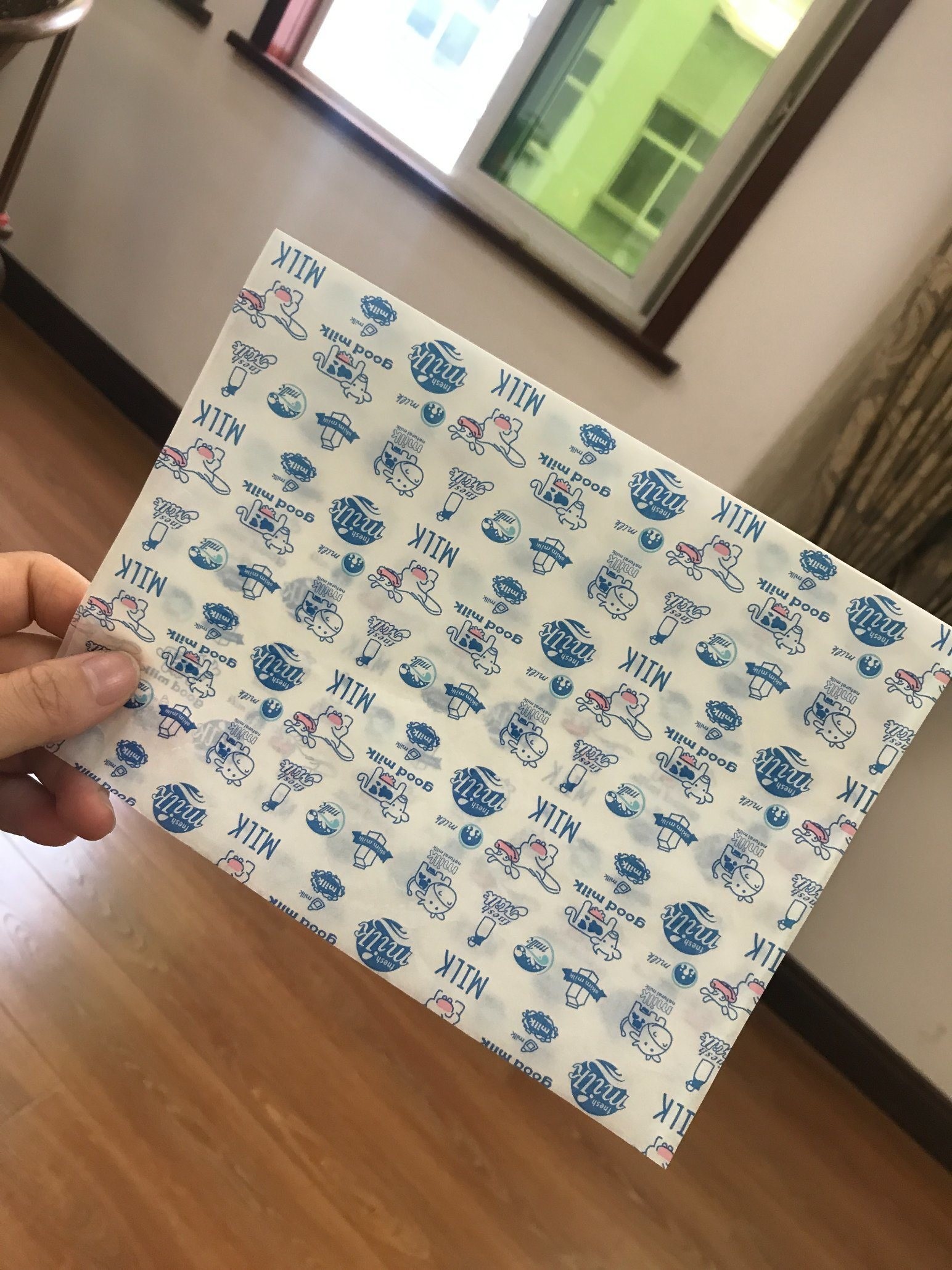

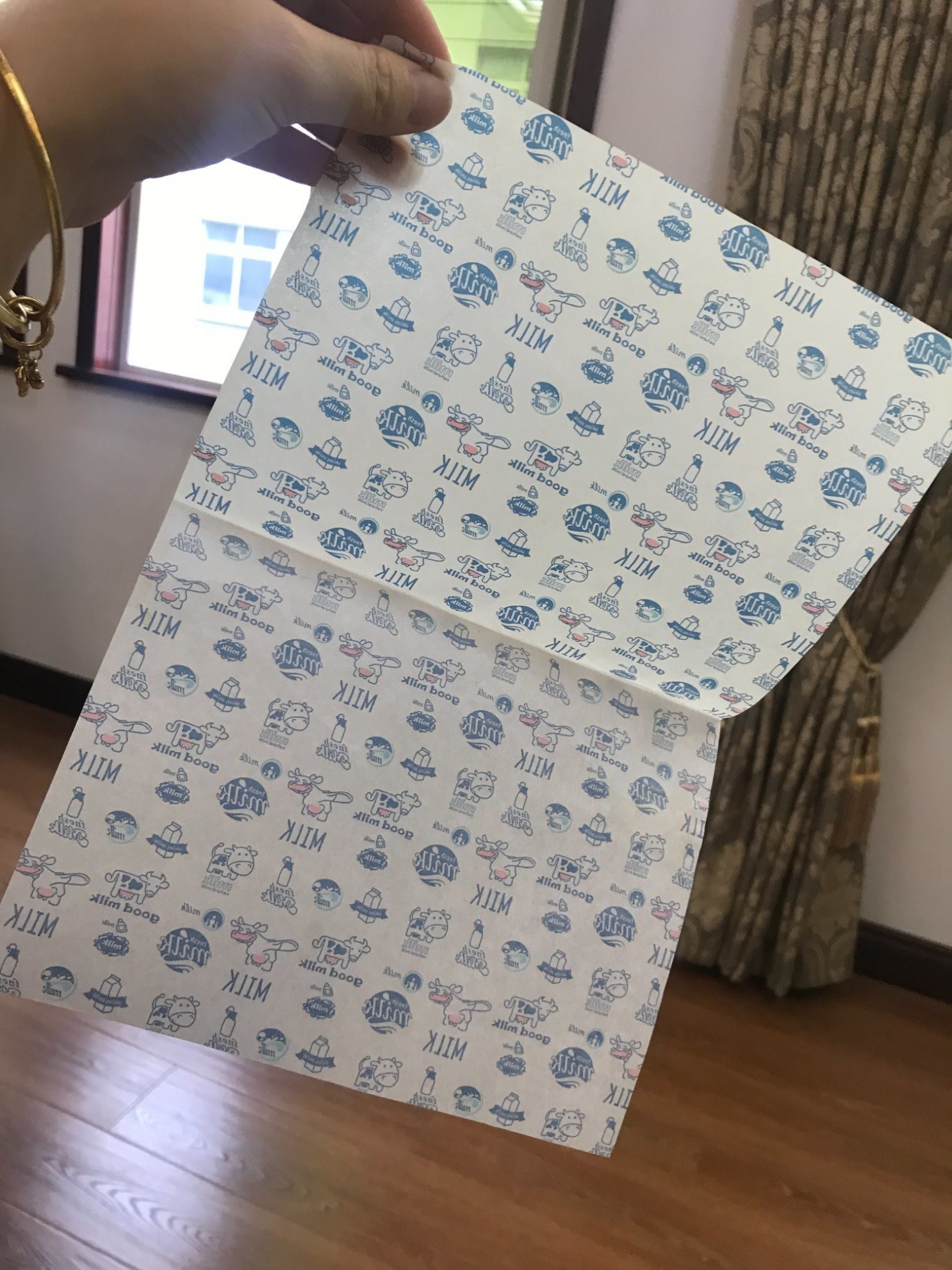

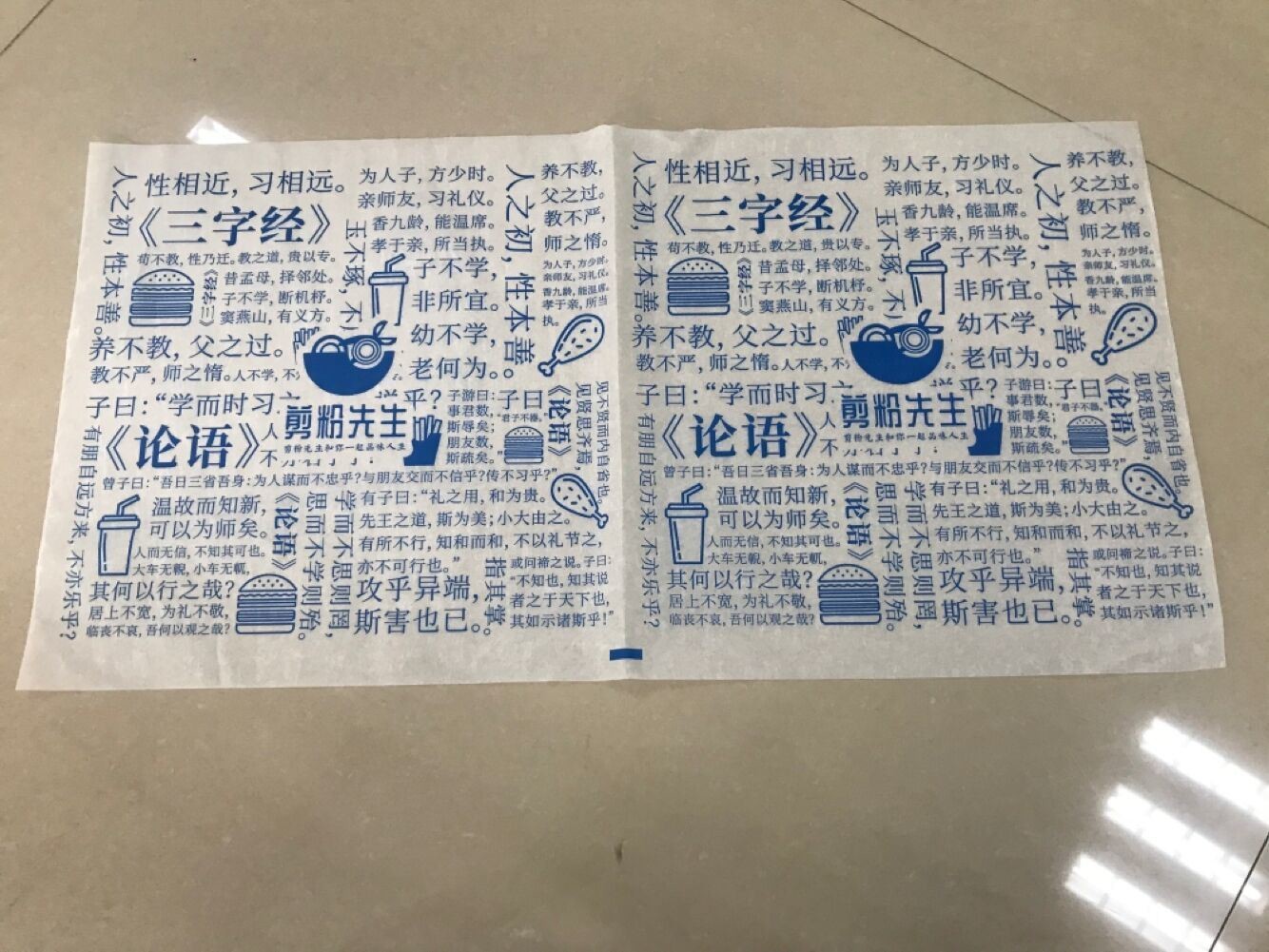

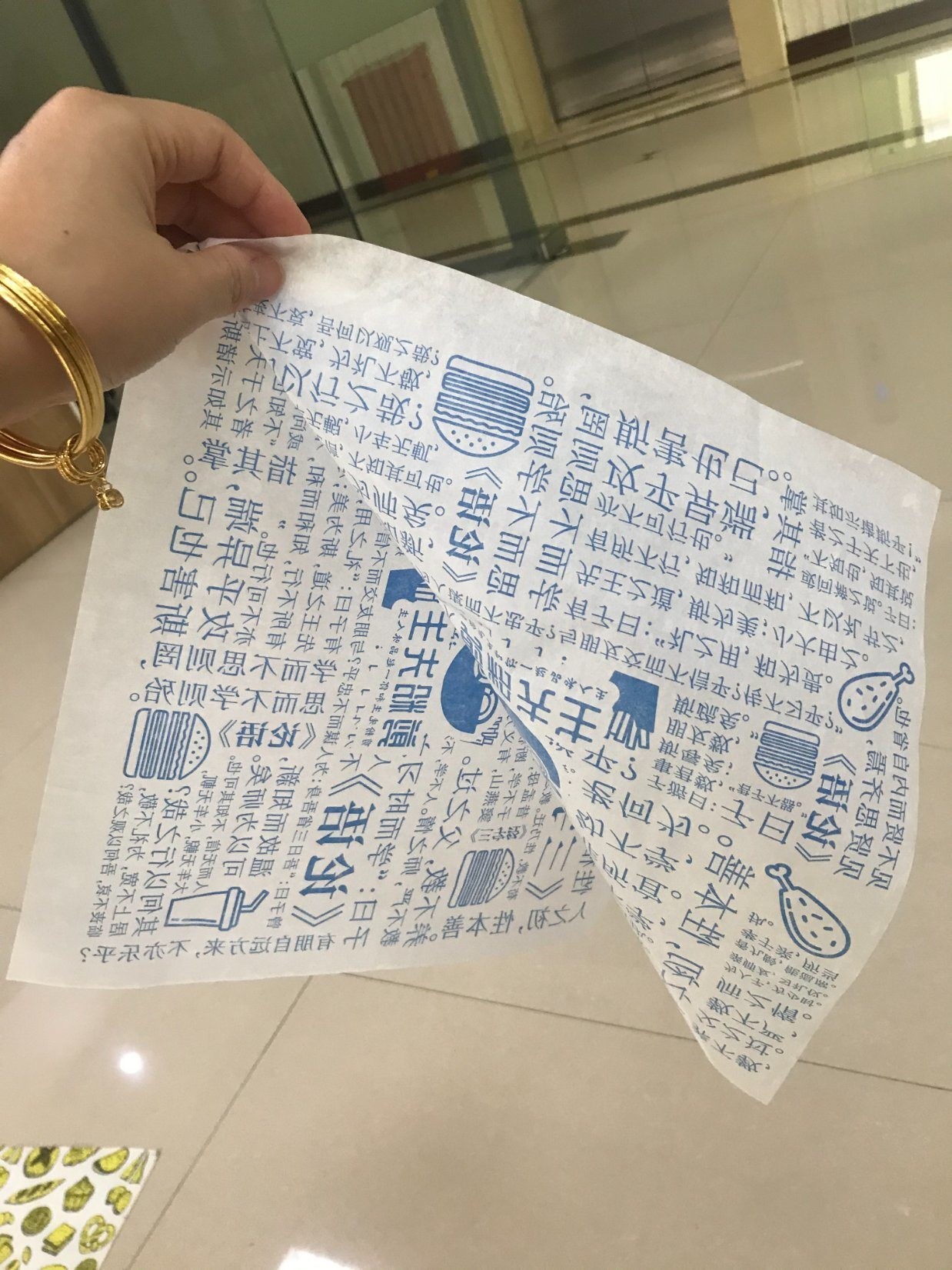

1.This machine is mainly used in food and packaging industry's packaging paper wax coating, so that papers can be moisture proof and waterproof, such as hamburge paper, candy paper, soap paper and carton packaging kraft paper coated wax
2. Wax one side of paper or two sides of paper
3. Wax coating weight can be controled 4-5 gsm for one side
4.circle water cooling system

MAIN TECHNICIAL SPECIFICATIONS

Specification	FM-L1200
Max.Web Width	1220mm
Max.Waxing Coating Width	1200mm
Max.Unwinder Diameter	1524mm
Max.Rewinder Diameter	1524mm
Max Wax Coating speed	150m/min
Unwinder Power	15KW
Rewinder Power	15KW
Cooling Power	10-15P
Wax Melting Power	Main Wax Melting Power: 9KW
	Auxiliary Wax Melting Power: 12KW
Power Requirement	380V 3PH 50Hz
Substrate	28-300gsm paper

Waxing unit (Fengming invention patent)
High speed paper waxing unit patent CN201610983844
This invention can realize high speed paper coated with wax, effective control of wax quantity, waxing effect is stable and evenly.

integral alloy cast iron double wall panels
frequency conversion control
In front and back the waxing roller are guide rollerl, let the paper on the waxing roller surface having the angle to control paper wax dipping time
the wax melting hopper and tray supply big amount of wax , ensure high speed waxing use quantity.
doctor blade structure ensures wax coating evenly
the special treatment paper guide roller resisting high temperature, non-stick of wax
the heat transfer oil ensures the temperature of the wax stable
temeprature of wax can be controled

melting wax tray: stainless steel

resistant to high temperature capacity: 25 kgs

wax melting hopper: stainless steel

temperature adjustable: up to 150 C
Capacity: 50kgs

the guide roller: surface Teflon, resisting high temperature, non-stick of wax
the waxing roller steel roller, chrome-faced
doctor blade , single-side waxing: 2sets
transmission mode: 3 phase asynchronous motor: 4KW: 1pc
temperature controller: OMRON 5pcs
