Name: Energy Saving Paper Wax Coating Machine High Efficiency Kraft Paper Coating Machine
Brand: Wenzhou Fengming Machinery Co., Ltd.
SKU: FM-L1200
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Model NO.: FM-L1200

Useful: Hamburger Paper

Run: High Speed

Transport Package: Standard

Specification: 7*3*1.6M

Origin: Zhejiang China

Supply Ability: 20/Month

Package Size: 1200.00cm * 450.00cm * 200.00cm

Package Gross Weight: 1600.000kg

Warranty: 1 Year

Machine: Wax Coating Machine

Material: Paper

Customization: Available | Customized Request

Shipping Cost: About Shipping Cost And Estimated Delivery Time.

: Initial Payment Full Payment

Currency: US$

Return&refunds: You Can Apply For A Refund Up To 30 Days After Receipt Of The Products.

Highlight:

Energy Saving Paper Wax Coating Machine

High Efficiency Paper Wax Coating Machine

Energy Saving Kraft Paper Coating Machine

Basic Infomation

Place of Origin: CHINA

Brand Name: FENGMING

Certification: CE

Model Number: FM-L1200

Payment & Shipping Terms

Packaging Details: woden pallet

Delivery Time: 30 working days

Payment Terms: T/T,L/C

Supply Ability: 10 sets

Gallery

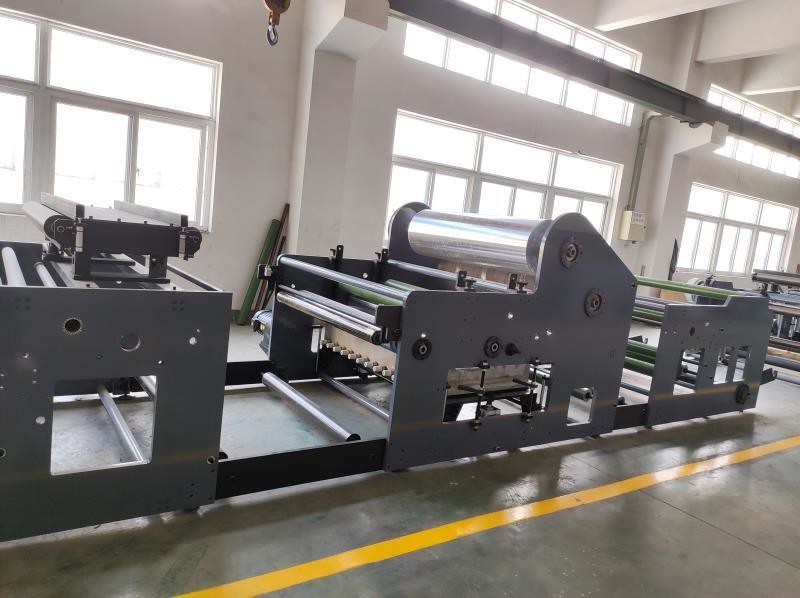

Energy Saving Paper Wax Coating Machine High Efficiency Kraft Paper Coating Machine

Product Description

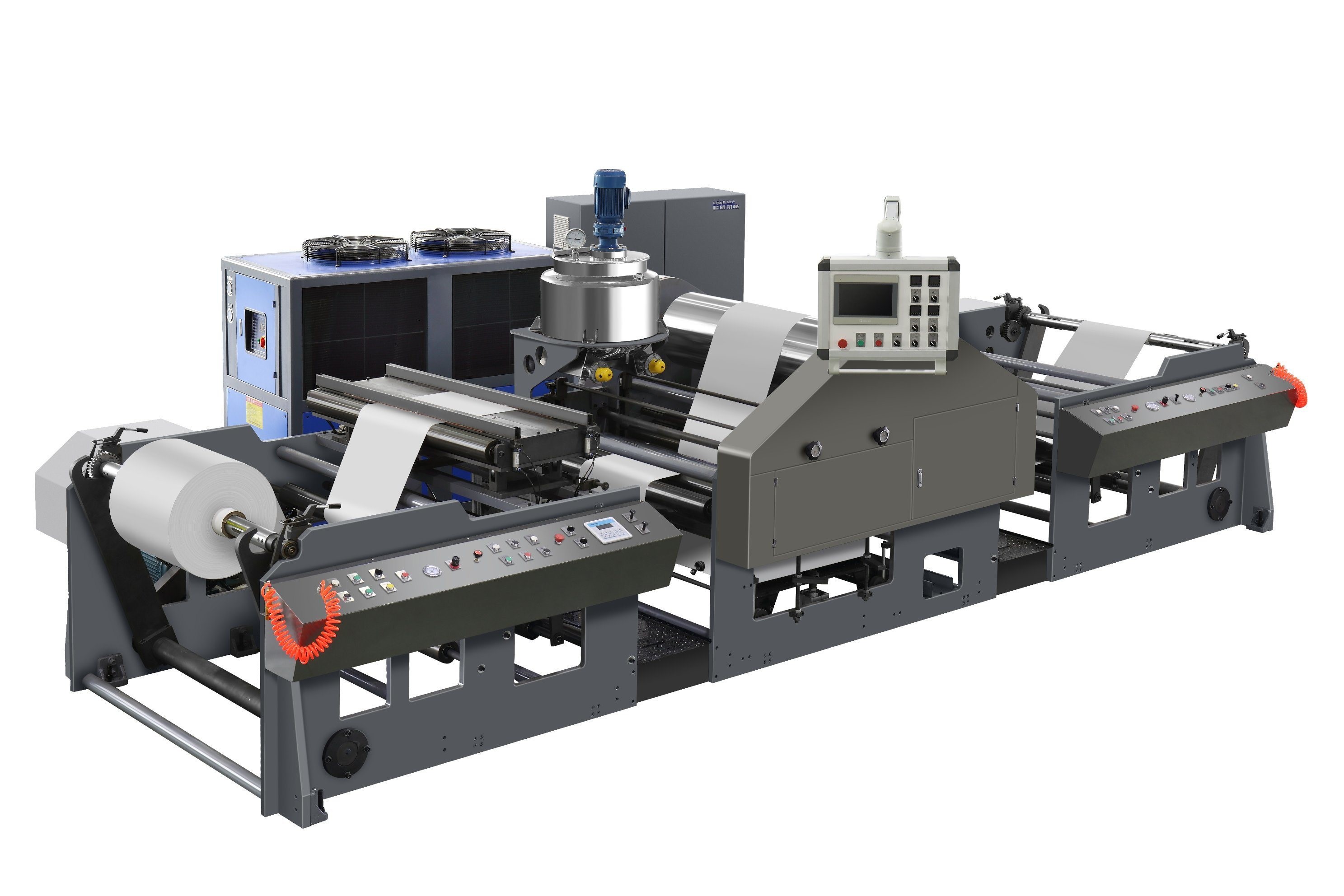

FM-L1200 Hamburger Paper Coating Machine 1200cm X 450cm X 200cm Package Size

This machine iss mainly used in food and packaging industry's packaging paper wax coating, so that papers can be moisture-proof and waterproof, such as hamburger paper, candy paper, soap paper and carton packaging kraft paper coated wax.
This invention can realize high speed paper coated with wax, effective control of wax quantity, waxing effect is stable and evenly.

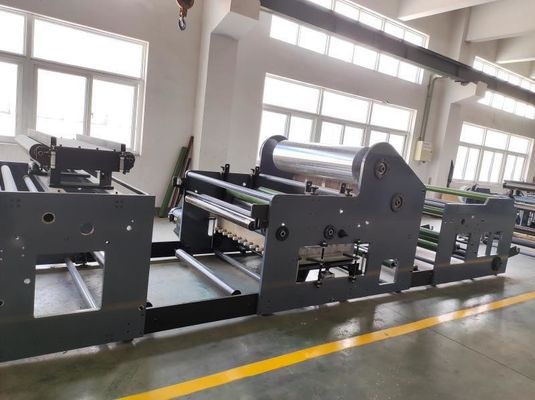

integral alloy cast iron double wall panels
frequency conversion control

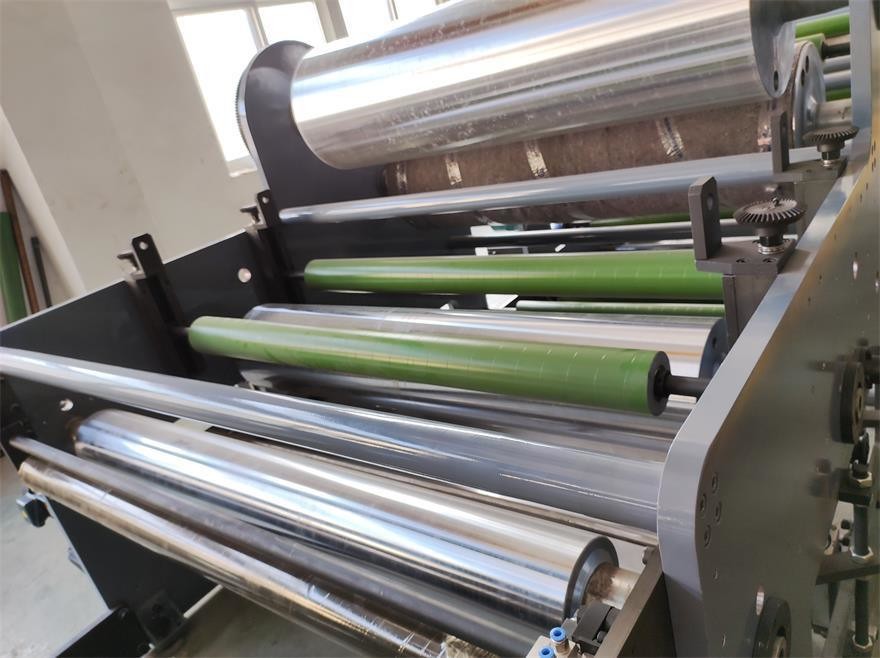

In front and back the waxing roller are guide rollerl, let the paper on the waxing roller surface having the angle to control paper wax dipping time
the wax melting hopper and tray supply big amount of wax , ensure high speed waxing use quantity.
doctor blade structure ensures wax coating evenly
the special treatment paper guide roller resisting high temperature, non-stick of wax
the heat transfer oil ensures the temperature of the wax stable
temeprature of wax can be controled

Energy Saving Paper Wax Coating Machine High Efficiency Kraft Paper Coating Machine 0

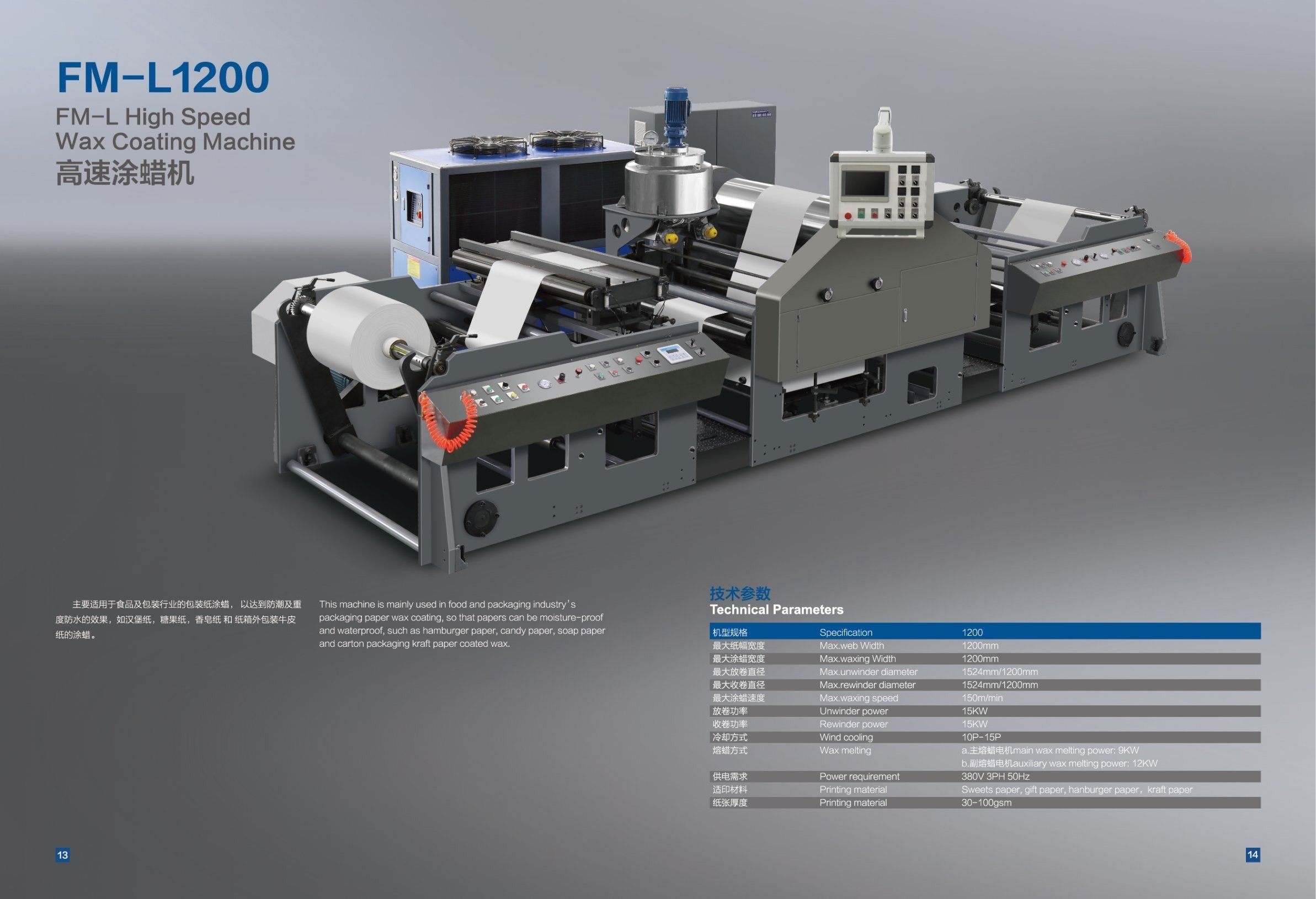

Tachnical Parameters
Specification	1200
Max.Web Width	1200mm
Max.waxing Width	1200mm
Max.unwinder diameter	1524mm
Max.rewinder diameter	1524mm
Max.waxing speed	150m/mim
Rewinder power	7.5kw
Water Cooling System	10P-15P
Wax melting	Wax Tray Heaater:18kw; Blade Heater:4kw
Power Requirement	380V 3PH 50HZ
Material	Sweets paper, gift paper, hamburger paper, kraft paper
Material	30-100gsm

Energy Saving Paper Wax Coating Machine High Efficiency Kraft Paper Coating Machine 6
