Name: Sleeve Type Flexographic Printing Machine For Aluminium Foil Paper And Double PE Printing
Brand: Wenzhou Fengming Machinery Co., Ltd.
SKU: FM-T1020
Price: 219,000.00 USD
Availability: InStock

Sleeve Type Flexographic Printing Machine For Aluminium Foil Paper And Double PE Printing

MOQ

USD58000-380000/Set

Price

Features Gallery Product Description Request A Quote

Features

Specifications

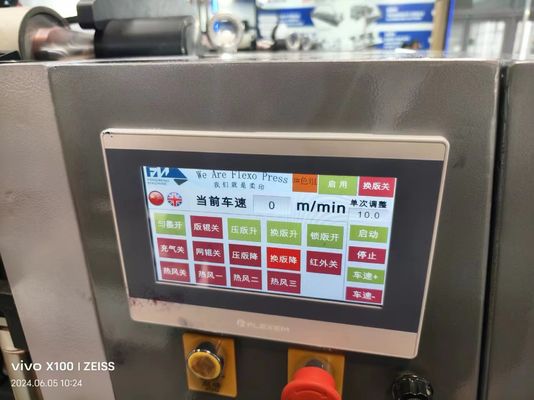

Control System: PLC System

Applicantions: Paper Cup, Carton, Paper Bag, Paper Package

Max.Web Width: 1020mm

Max.printing Width: 1000mm

Max.Die-cutting Width: 1000mm

Printing Repeat Length: 286--1200mm

Highlight:

Aluminium Foil Paper Flexographic Printing Machine

Double PE Printing Flexographic Printing Machine

Double PE Printing Flexographic Printing Press

Basic Infomation

Place of Origin: CHINA

Brand Name: FENGMING

Certification: CE

Model Number: FM-T1020

Payment & Shipping Terms

Packaging Details: wooden pallet

Delivery Time: 30 working days.

Payment Terms: L/C,T/T

Supply Ability: 15 sets

Gallery

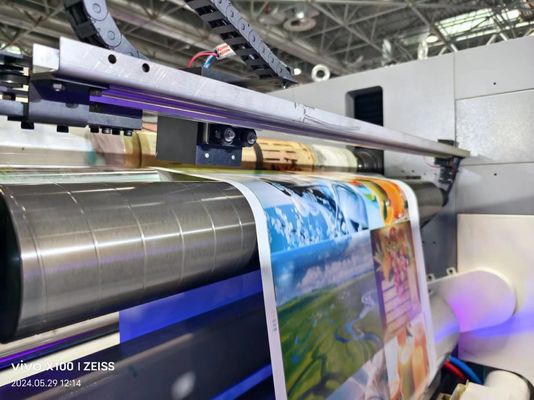

Sleeve Type Flexographic Printing Machine For Aluminium Foil Paper And Double PE Printing

Product Description

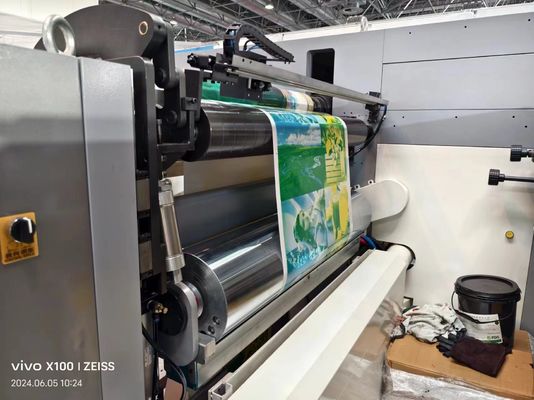

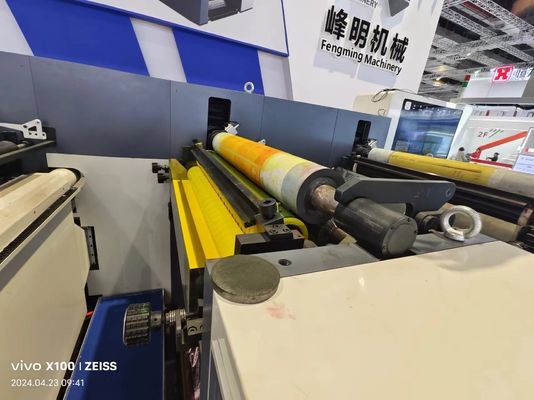

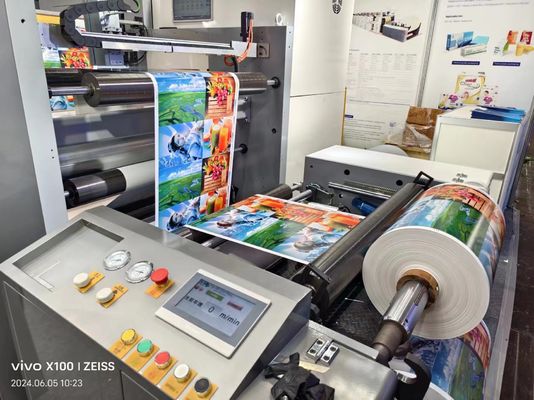

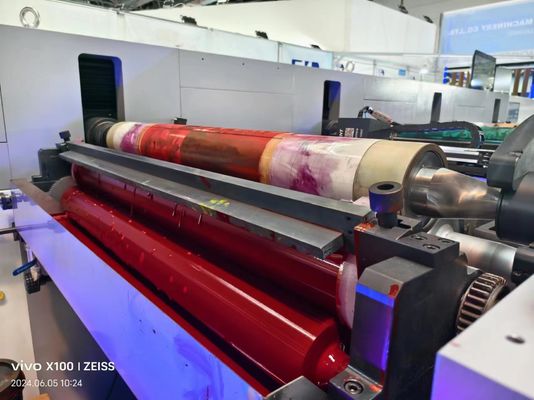

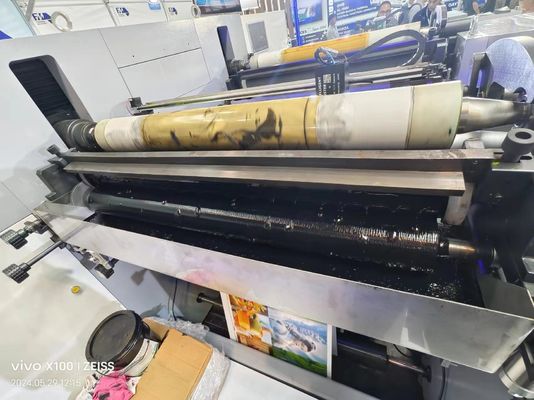

It is controlled centrally by PLC system and generally consists of unwinding section, infeed section,printing section, drying section, outfeed section, rewinding section and control section.This machine is an ideal machine for printing paper cup, carton, paper bag, paper package, and so on

Main Technical Parameter:

Specification	39.5"(1000)
Max.Web Width	1020mm
Max.printing width	1000mm
Max.Die-cutting width	1000mm
Printing Repeat length	286--1200mm
Die-cutting Repeat length	286--1200mm
Max.Unwinder Diameter	1524mm
Max.Rewinder Diameter	1524mm
Gearing	Gearing
Max. mechanical speed	150m/min
Gearing	1/8cp
Max. mechanical speed	150m/min
Max printing speed	120m/min
Diameter of web roller	100mm
Base motor power	11KW
Drying mode	a. WARM DRYING b. IR DRYING
Applicable Ink	a. Water-based ink b. UV ink
Power Requirement	380V 3PH 50Hz
Printing Material	Light weight coated paper, carton board materials, kraft paper, chrome paper, PVC wall paper, laminated paper, white cardboard paper, aluminium-foil paper
