Home /Products/Sleeve Printing Machine/CE Approved Fengming Paper Flexo Paper Bag Printer Unit Type Structure for Printing

CE Approved Fengming Paper Flexo Paper Bag Printer Unit Type Structure for Printing

1
MOQ
USD58000-380000/Set
Price
CE Approved Fengming Paper Flexo Paper Bag Printer Unit Type Structure for Printing
Features Gallery Product Description Request A Quote
Features
Specifications
Model NO.: FM-CS
Structure: Unit Type
Application: Flexible Packaging Printing
Automatic Grade: Automatic
Printing Speed: 200m/min
Max. Web Width: 1320mm
Max. Printing Width: 1270mm
Max. Speed: 240m/Min
Printing Repeat Length: 300-1200mm
Transport Package: Wooden Pallet With Film Package
Specification: CE
Trademark: Fengming
Origin: Zhejiang, China
HS Code: 8443160090
Supply Ability: 30 Sets/Year
Printing Page: Single Faced
Printing Color: 8 Colors
Anilox Roller: Ceramic Anilox Roller
Dryer: UV& IR
Type: Flexo
Embossing Structure: Rotary Letterpress
Customization: Available | Customized Request
Control System: PLC System
Applicantions: Paper Cup, Carton, Paper Bag, Paper Package
Max.Web Width: 1020mm
Max.printing Width: 1000mm
Max.Die-cutting Width: 1000mm
Printing Repeat Length: 286--1200mm
Highlight:

Unit Type Flexo Printing Machine

,

CE Approved Flexo Printing Machine
Basic Infomation
Place of Origin: CHINA
Brand Name: FENGMING
Certification: CE
Model Number: FM-CS1020
Payment & Shipping Terms
Packaging Details: wooden pallet
Delivery Time: 30 working days
Payment Terms: T/T,L/C
Supply Ability: 15 sets
Product Description
CE Approved Fengming Paper Flexo Paper Bag Printer Unit Type Structure for Printing 0
CE Approved Fengming Paper Flexo Paper Bag Printer Unit Type Structure for Printing 1

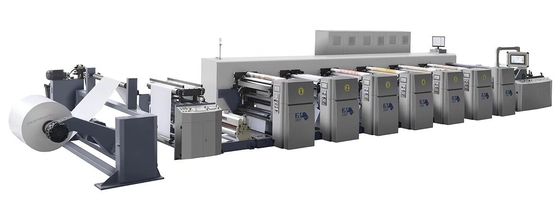

FM-CS1020-1350 Flexographic Printing Machine(Petal Type)

  1. Petal type plate mounting, anilox and cylinder with quick change structure.
  2. Printing unit easy operation, cylinder and anilox pressing once successfuly.
  3. Plate full servo shaftless transmission, automatically pre-print, time saving & material saving.
  4. Registering remains the same during lifting process.
  5. Register position automatic memory function.

Application
Suitable for eco-friendly packaging, such as the paper bag used for food and healthcare industry, paper box, paper cup, the pre-printing carton of paper bag, bag courier, milk carton medicine use.

Paper Used
Kraft paper, paperboard, coated paper, liner paper, laminated paper, multilayer composite paper, carton board materials ect.

Technical Parameters:
Specification 1020 1300 1350
Max. Web Width 1020mm 1300mm 1350mm
Max. Printing Width 1000mm 1270mm 1320mm
Max Die-Cutting Width 1000mm 1270mm 1320mm
Printing Repeat 300-1200mm 300-1200mm 300-1200mm
Die-cutting Repeat 300-1200mm 300-1200mm 300-1200mm
Max.Unwinder Diameter 1524mm 1524mm 1524mm
Max.Rewinder Diameter 1524mm 1524mm 1524mm
Gearing 1/8cp 1/8cp 1/8cp
Max Printing Speed 240m/min 240m/min 240m/min
Diameter of web roller 100mm 100mm 100mm
Drying mode Warm Drying/IR Drying/ UV Drying
Substrate 80-450g chrome paper, aluminum-foil paper, BOPP, PET, paper board, kraft paper.

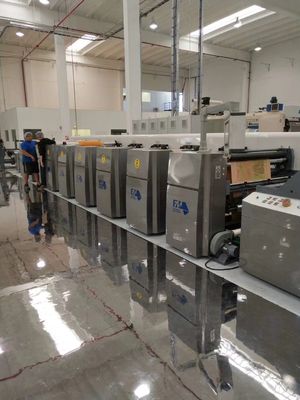

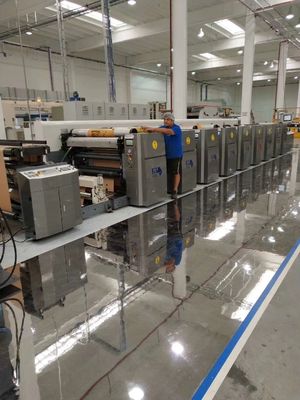

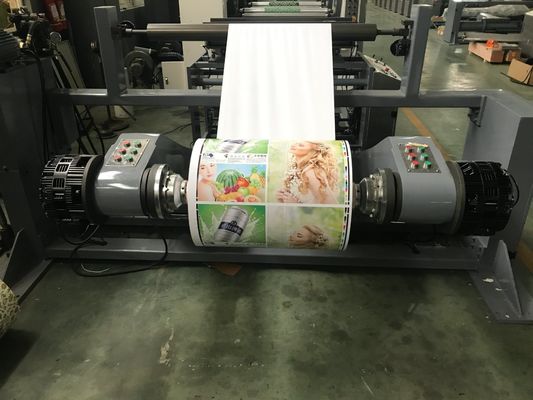

CE Approved Fengming Paper Flexo Paper Bag Printer Unit Type Structure for Printing 2
CE Approved Fengming Paper Flexo Paper Bag Printer Unit Type Structure for Printing 3
CE Approved Fengming Paper Flexo Paper Bag Printer Unit Type Structure for Printing 4
CE Approved Fengming Paper Flexo Paper Bag Printer Unit Type Structure for Printing 5
CE Approved Fengming Paper Flexo Paper Bag Printer Unit Type Structure for Printing 6
