Features

Specifications

Model NO.: FM-CS

Type: Flexo

Embossing Structure: Rotary Letterpress

Structure: Unit Type

Application: Flexible Packaging Printing

Automatic Grade: Automatic

Printing Speed: 200m/min

Max. Web Width: 1020mm

Max. Printing Width: 1000mm

Printing Repeat: 300-1200mm

Max.Unwinder Diameter: 1524mm

Max.Rewinder Diameter: 1524mm

Gearing: 1/8cp

Machine Speed: 240m/Min

Diameter Of Web Roller: 100mm

Drying Mode: Hot Air Drying & IR Drying

Printing Material: Various Kinds Of Paper 60-250GSM

Transport Package: Wooden Pallet With Film Package

Specification: 1020mm

Trademark: Fengming

Origin: Zhejiang, China

HS Code: 8443160090

Supply Ability: 5PCS/Month

After-sales Service: After-Sales Service Is Available Overseas

Warranty: 1 Year

Printing Page: Single Faced

Printing Color: 6 Colors

Anilox Roller: Ceramic Anilox Roller

Dryer: IR

Customization: Available | Customized Request

Control System: PLC System

Applicantions: Paper Cup, Carton, Paper Bag, Paper Package

Max.Web Width: 1020mm

Max.printing Width: 1000mm

Max.Die-cutting Width: 1000mm

Printing Repeat Length: 286--1200mm

Highlight:

Flexible Sleeve Printing Machine

Servo Control Sleeve Printing Machine

Flexible Paper Cup Flexo Printing Machine

Basic Infomation

Payment & Shipping Terms

Gallery

Flexible Sleeve Printing Machine Paper Cup Flexo Printing Machine Servo Control

Product Description

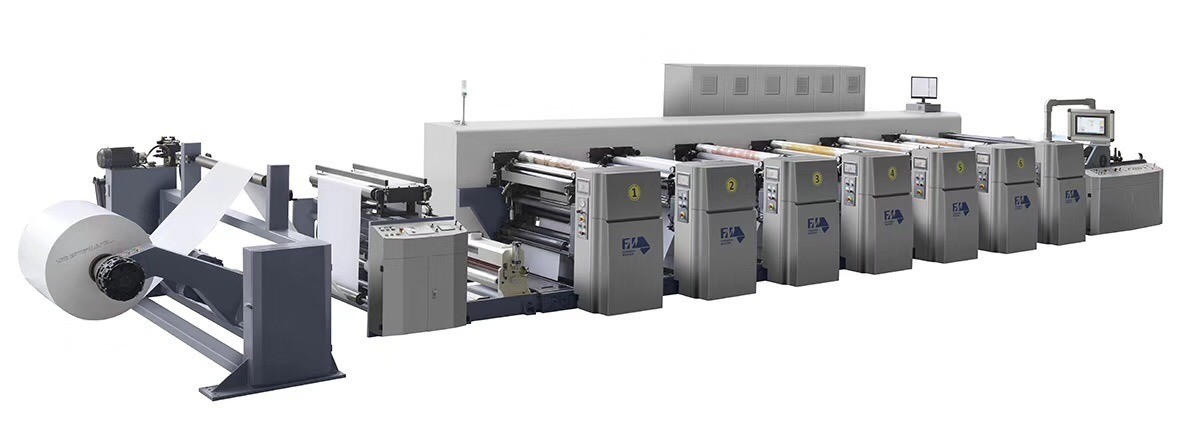

FM-CS1020-1350 Flexographic Printing Machine (Petal Type)

Petal type plate mounting, anilox and cylinder with quick change structure.
Printing unit easy operation, cylinder and anilox pressing once successfuly.
Plate full servo shaftless transmission, automatically pre-print, time saving & material saving.
Registering remains the same during lifting process.
Register position automatic memory function.

Applications

Suitable for eco-friendly packaging, such as the paper bag used for food and healthcare industry, paper box, paper cup, the pre-printing carton of paper bag, bag courier, milk carton medicine use.

Paper Used

Kraft paper, paperboard, coated paper, liner paper, laminated paper, multilayer composite paper, carton board materials ect.

Technical Parameters

Specification	1020	1300	1350
Max. Web Width	1020mm	1300mm	1350mm
Max. Printing Width	1000mm	1270mm	1320mm
Max Die-Cutting Width	1000mm	1270mm	1320mm
Printing Repeat	300-1200mm	300-1200mm	300-1200mm
Die-cutting Repeat	300-1200mm	300-1200mm	300-1200mm
Max.Unwinder Diameter	1524mm	1524mm	1524mm
Max.Rewinder Diameter	1524mm	1524mm	1524mm
Gearing	1/8cp	1/8cp	1/8cp
Max Printing Speed	240m/min	240m/min	240m/min
Diameter of web roller	100mm	100mm	100mm
Drying mode	Hot Air Drying/IR Drying/ UV Drying
Printing material	Single / Double PE coated paper, art paper, kraft paper, hamburger paper
