Home /Products/Sleeve Printing Machine/240m/Min Flexo Paper Cup Printer with Multi-Color Servo Drive and Ceramic Anilox Roller

240m/Min Flexo Paper Cup Printer with Multi-Color Servo Drive and Ceramic Anilox Roller

1
MOQ
USD58000-380000/Set
Price
240m/Min Flexo Paper Cup Printer with Multi-Color Servo Drive and Ceramic Anilox Roller
Features Gallery Product Description Request A Quote
Features
Specifications
Model NO.: FM-CS1020
Structure: Unit Type
Application: Flexible Packaging Printing
Automatic Grade: Automatic
Printing Speed: 200m/min
Max. Web Width: 1020mm
Max. Printing Width: 1000mm
Printing Repeat: 300-1200mm
Max.Unwinder Diameter: 1524mm
Max.Rewinder Diameter: 1524mm
Gearing: 1/8cp
Machine Speed: 240m/Min
Diameter Of Web Roller: 100mm
Drying Mode: Hot Air Drying & IR Drying
Printing Material: Various Kinds Of Paper 60-250GSM
Transport Package: Wooden Pallet With Film Package
Specification: 1020mm
Trademark: Fengming
Origin: Zhejiang, China
HS Code: 8443160090
Supply Ability: 5PCS/Month
Printing Page: Single Faced
Printing Color: 6 Colors
Anilox Roller: Ceramic Anilox Roller
Dryer: IR
Type: Flexo
Embossing Structure: Rotary Letterpress
Customization: Available | Customized Request
Control System: PLC System
Applicantions: Paper Cup, Carton, Paper Bag, Paper Package
Max.Web Width: 1020mm
Max.printing Width: 1000mm
Max.Die-cutting Width: 1000mm
Printing Repeat Length: 286--1200mm
Highlight:

240m/Min Flexo Printing Machine
Basic Infomation
Place of Origin: CHINA
Brand Name: FENGMING
Certification: CE
Model Number: FM-CS1020
Payment & Shipping Terms
Packaging Details: wooden pallet
Delivery Time: 30 working days
Payment Terms: T/T,L/C
Supply Ability: 15 sets
Product Description

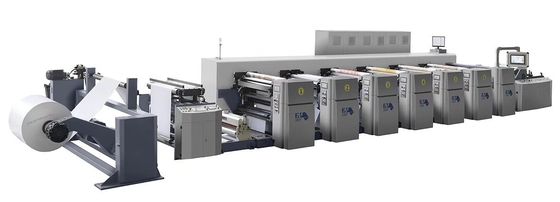

240m/Min Flexo Paper Cup Printer with Multi-Color Servo Drive and Ceramic Anilox Roller 0

FM-CS1020-1350 Flexographic Printing Machine (Petal Type)

  1. Petal type plate mounting, anilox and cylinder with quick change structure.
  2. Printing unit easy operation, cylinder and anilox pressing once successfuly.
  3. Plate full servo shaftless transmission, automatically pre-print, time saving & material saving.
  4. Registering remains the same during lifting process.
  5. Register position automatic memory function.

Applications

Suitable for eco-friendly packaging, such as the paper bag used for food and healthcare industry, paper box, paper cup, the pre-printing carton of paper bag, bag courier, milk carton medicine use.

Paper Used

Kraft paper, paperboard, coated paper, liner paper, laminated paper, multilayer composite paper, carton board materials ect.


Technical Parameters

Specification 1020 1300 1350
Max. Web Width 1020mm 1300mm 1350mm
Max. Printing Width 1000mm 1270mm 1320mm
Max Die-Cutting Width 1000mm 1270mm 1320mm
Printing Repeat 300-1200mm 300-1200mm 300-1200mm
Die-cutting Repeat 300-1200mm 300-1200mm 300-1200mm
Max.Unwinder Diameter 1524mm 1524mm 1524mm
Max.Rewinder Diameter 1524mm 1524mm 1524mm
Gearing 1/8cp 1/8cp 1/8cp
Max Printing Speed 240m/min 240m/min 240m/min
Diameter of web roller 100mm 100mm 100mm
Drying mode Hot Air Drying/IR Drying/ UV Drying
Printing material Single / Double PE coated paper, art paper, kraft paper, hamburger paper

240m/Min Flexo Paper Cup Printer with Multi-Color Servo Drive and Ceramic Anilox Roller 1
240m/Min Flexo Paper Cup Printer with Multi-Color Servo Drive and Ceramic Anilox Roller 2
240m/Min Flexo Paper Cup Printer with Multi-Color Servo Drive and Ceramic Anilox Roller 3
